SKU: ST60DEC-RHP

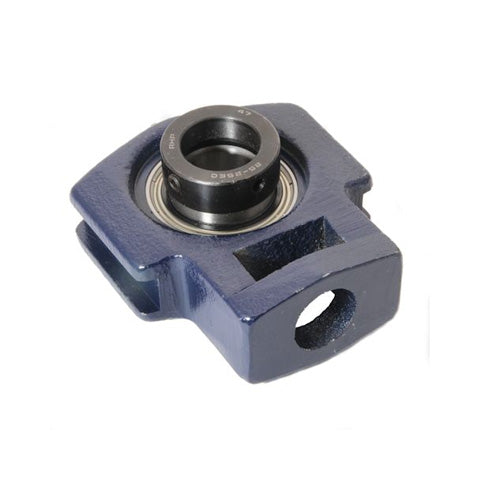

RHP ST60DEC Cast Iron Take Up Unit and 60mm Bore Insert
RHP ST60DEC Cast Iron Take Up Unit and 60mm Bore Insert
Regular price
€197,95
ex VAT
Regular price
Sale price
€197,95
ex VAT
In stock
Price Break
10+
€150,35
20+
€141,90
30+
€140,22
40+
€138,53
50+
€136,84
75+
€135,15
100+
€126,70
200+
€125,01
250+
€123,32
500+
€121,63
1000+
€118,25
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- ST
Technical
Technical

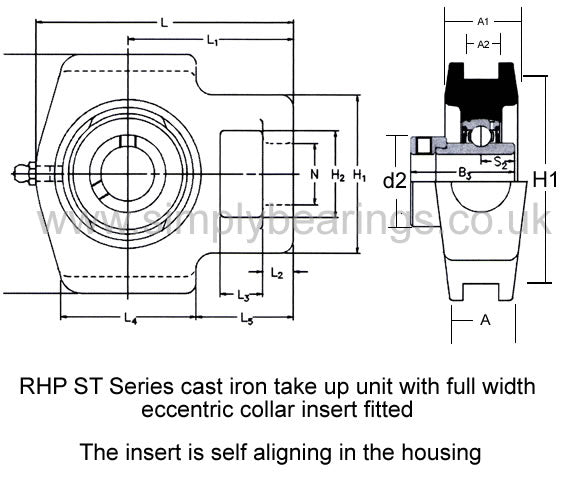

| Bore | 60mm |
|---|---|
| L | 192mm |
| L1 | 119mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B3 | 77.82mm |
| s2 | 31.02mm |
| d2 | 84.12mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 5.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60DECG+insonly">1060-60DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
