SKU: ST75-RHP

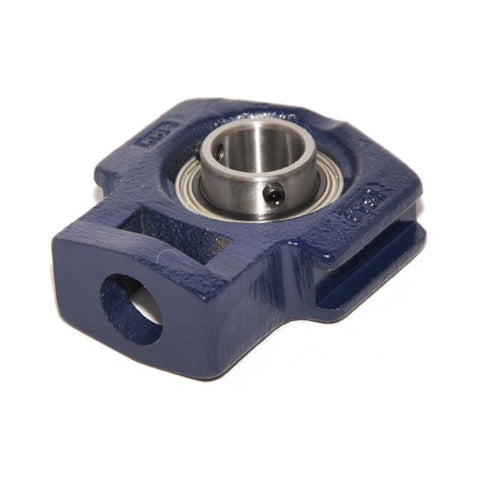

RHP ST75 Cast Iron Take Up Unit and 75mm Bore Insert
RHP ST75 Cast Iron Take Up Unit and 75mm Bore Insert
Regular price
€329,95
ex VAT
Regular price
Sale price
€329,95
ex VAT
In stock
Price Break
10+
€250,55
20+
€236,47
30+
€233,66
40+
€230,84
50+
€228,03
75+
€225,21
100+
€211,13
200+
€208,32
250+
€205,50
500+
€202,69
1000+
€197,06
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 75mm
- Style:
- ST
Technical
Technical
| Bore | 75mm |
|---|---|
| L | 222.5mm |
| L1 | 137.5mm |
| L2 | 21.5mm |
| L3 | 32mm |
| L4 | 120.5mm |
| L5 | 77mm |
| H | 166.5mm |
| H1 | 113mm |
| H2 | 70mm |
| H3 | 150.8mm |
| N | 42mm |
| A | 70mm |
| A1 | 50.5mm |
| A2 | 27mm |
| B | 77.77mm |
| s | 33.37mm |
| d1 | 92mm |
| Dynamic load | 66000 N |
| Static load | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-75G+insonly">1075-75G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
