SKU: ST75DEC-RHP

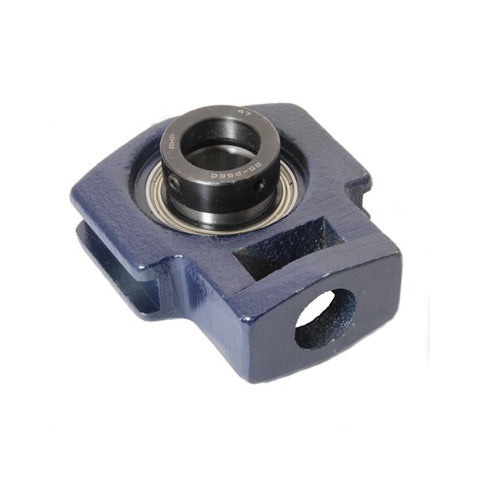

RHP ST75DEC Cast Iron Take Up Unit and 75mm Bore Insert
RHP ST75DEC Cast Iron Take Up Unit and 75mm Bore Insert
Regular price
€397,95
ex VAT
Regular price
Sale price
€397,95
ex VAT
In stock
Price Break
10+
€302,99
20+
€285,97
30+
€282,56
40+
€279,16
50+
€275,76
75+
€272,35
100+
€255,33
200+
€251,93
250+
€248,52
500+
€245,12
1000+
€238,31
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 75mm
- Style:
- ST
Technical
Technical
| Bore | 75mm |
|---|---|
| L | 222.5mm |
| L1 | 137.5mm |
| L2 | 21.5mm |
| L3 | 32mm |
| L4 | 120.5mm |
| L5 | 77mm |
| H | 166.5mm |
| H1 | 113mm |
| H2 | 70mm |
| H3 | 150.8mm |
| N | 42mm |
| A | 70mm |
| A1 | 50.5mm |
| A2 | 27mm |
| B3 | 91.72mm |
| s2 | 37.37mm |
| d2 | 101.6mm |
| Dynamic load | 66000 N |
| Static load | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-75DECG+insonly">1075-75DECG Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
