SKU: SUCFL.PL.208-24

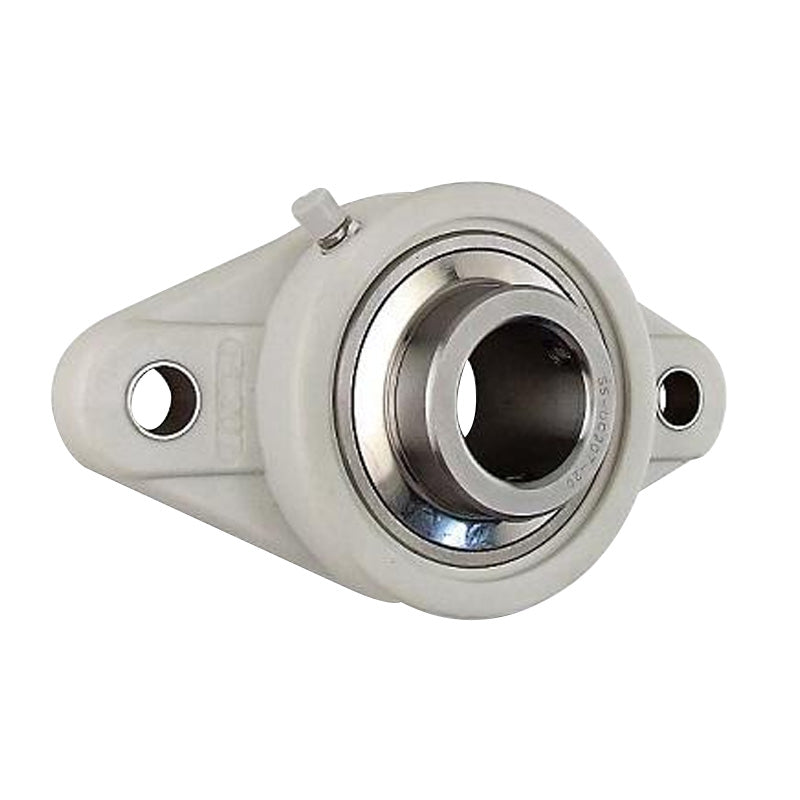

SUCFLPL208-24 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-1/2 inch Bore Stainless Insert - Allow 2-3 Days
SUCFLPL208-24 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-1/2 inch Bore Stainless Insert - Allow 2-3 Days
Regular price
€41,95
ex VAT
Regular price
Sale price
€41,95
ex VAT
Equivalent to: PSFT1.1/2CR
In stock
Price Break
3+
€35,08
4+
€33,66
9+
€32,95
19+
€31,89
49+
€31,18
99+
€29,41
499+
€24,80
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
SUCFLP or SFT Series 2 Bolt Oval Thermo-Plastic Housings: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. This housing unit may be supplied in either green or white. |
Equivalent: PSFT1.1/2CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCFL
- Bolt Hole Centres:
- 144mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| a | 175mm |
| e | 144mm |
| i | 21mm |
| g | 14mm |
| L | 36mm |
| S | 16mm |
| b | 100mm |
| Z | 51.2mm |
| Bi | 49.2mm |
| n | 19.0mm |
| Bolt | 16mm |
| Weight | 1.6 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 4000 rpm |
