SKU: SUCT.PL.205

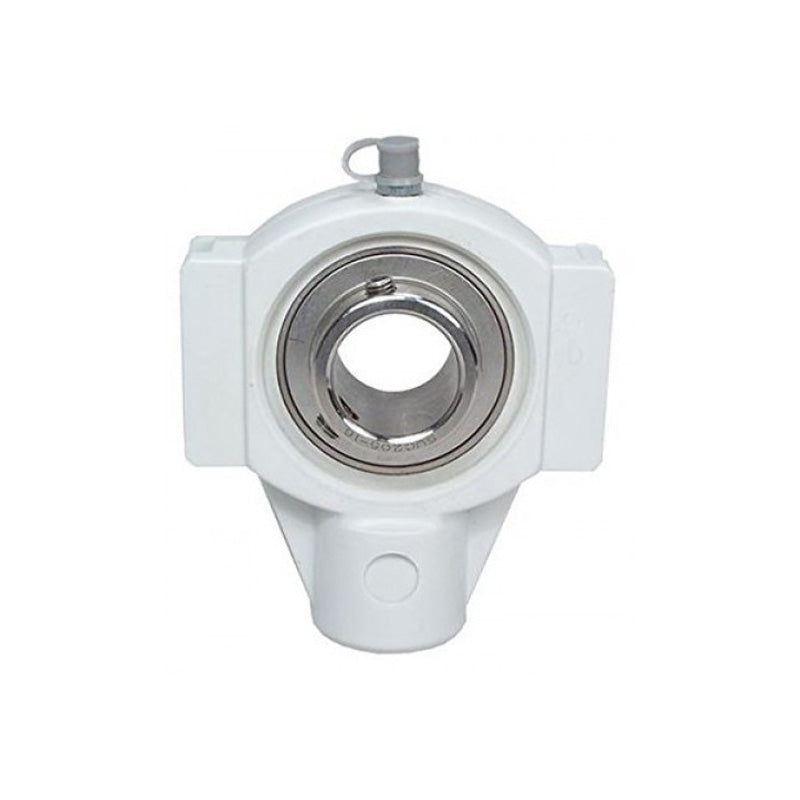

SUCTPL205 Metric Thermo Plastic Take Up Unit Housing with 25mm Bore Stainless Insert
SUCTPL205 Metric Thermo Plastic Take Up Unit Housing with 25mm Bore Stainless Insert
Regular price
€30,95
ex VAT
Regular price
Sale price
€30,95
ex VAT
Equivalent to: PST25CR
In stock
Price Break
3+
€23,38
4+
€22,07
9+
€21,80
19+
€21,54
49+
€21,28
99+
€21,02
499+
€19,70
999+
€19,44
1999+
€19,18
2999+
€18,91
4999+
€18,39
Share this product
Description
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PST25CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCT
Technical
Technical
| d | 25mm |
|---|---|
| a | 99mm |
| c | 27.5mm |
| d | 12mm |
| h | 64mm |
| m | 76mm |
| s | M16 |
| t | 36mm |
| v | 88mm |
| w | 47mm |
| B | 34.1mm |
| n | 14.3mm |
| Weight | 0.83 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 6250 rpm |
