SKU: SUCT.PL.210

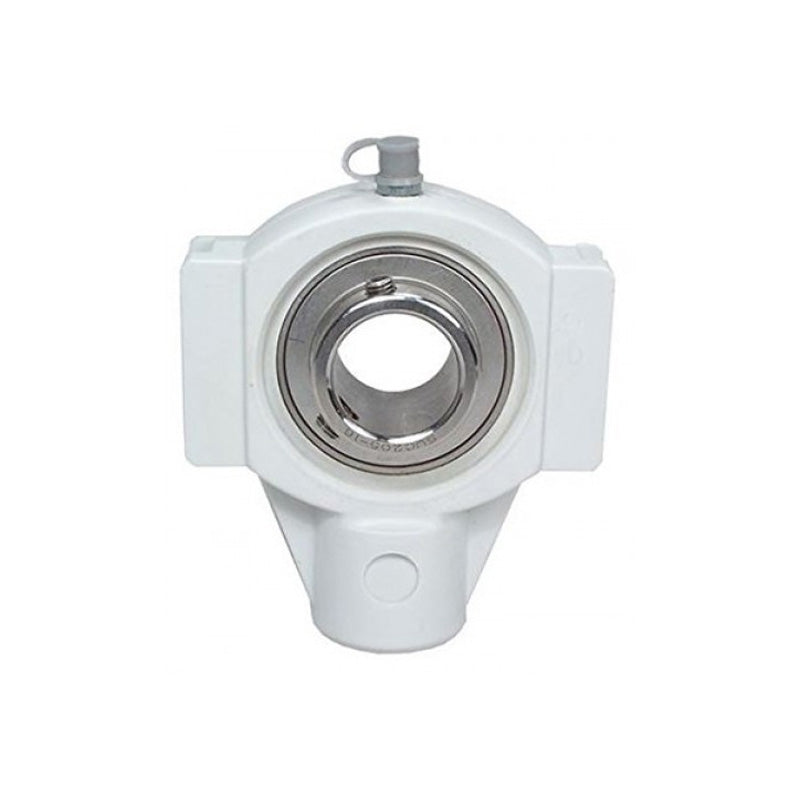

SUCTPL210 Metric Thermo Plastic Take Up Unit Housing with 50mm Bore Stainless Insert
SUCTPL210 Metric Thermo Plastic Take Up Unit Housing with 50mm Bore Stainless Insert
Regular price
€55,95
ex VAT
Regular price
Sale price
€55,95
ex VAT
Equivalent to: PST50CR
In stock
Price Break
3+
€42,33
4+
€39,95
9+
€39,47
19+
€39,00
49+
€38,52
99+
€38,05
499+
€35,67
999+
€35,19
1999+
€34,72
2999+
€34,24
4999+
€33,29
Share this product
Description
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PST50CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCT
Technical
Technical
| d | 50mm |
|---|---|
| a | 149mm |
| c | 40mm |
| d | 16mm |
| h | 90mm |
| m | 102mm |
| s | M20 |
| t | 50mm |
| v | 117mm |
| w | 85mm |
| B | 51.6mm |
| n | 19mm |
| Weight | 2.5 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 3400 rpm |
