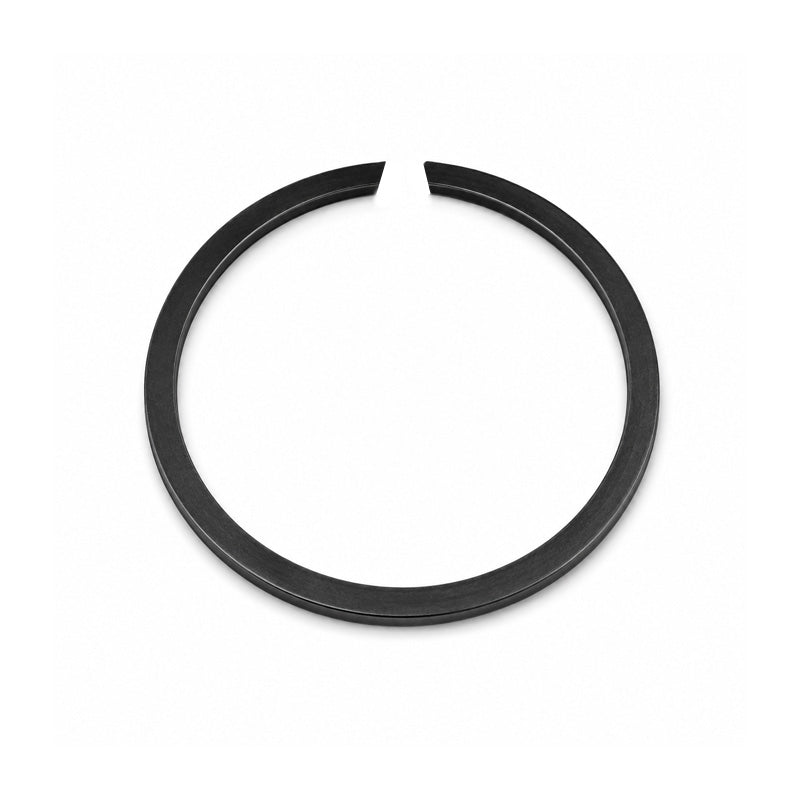

• SW125 Snap Ring to Suit 125mm Shaft
1 1

SKU: SW125-M2400

SW125 Snap Ring to Suit 125mm Shaft

SW125 Snap Ring to Suit 125mm Shaft
€3,95 ex VAT
€3,95 ex VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS125 CFS-125 2400-125 SW125 SW-125 M2400-125

In stock

Price Break
5+ €2,17
10+ €1,86
20+ €1,71
50+ €1,55
100+ €1,24
500+ €1,09
1000+ €0,93
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS125 CFS-125 2400-125 SW125 SW-125 M2400-125
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
121.5mm
Shaft Size:
125mm
Technical
d1 125mm
s 2.5mm (Tolerance -0.1)
b 3.4mm (Tolerance -0.1)
d3 max. 121.5mm
d2 122.7mm (Tolerance - 0.25)
m min. 2.7mm
FN 78.5 kN
FR 41.8 kN
n det x1000 1 rpm
