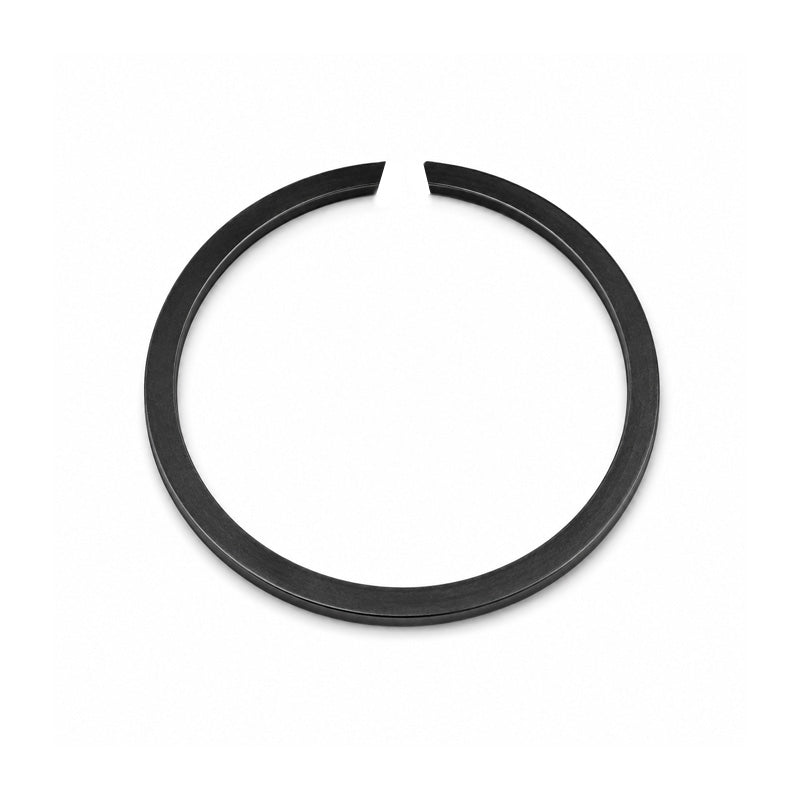

• SW28 Snap Ring to Suit 28mm Shaft
1 1

SKU: SW28-M2400

SW28 Snap Ring to Suit 28mm Shaft

SW28 Snap Ring to Suit 28mm Shaft
€1,95 ex VAT
€1,95 ex VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS28 CFS-28 2400-28 SW28 SW-28 M2400-28

In stock

Price Break
10+ €0,47
20+ €0,36
50+ €0,26
100+ €0,21
500+ €0,17
1000+ €0,13
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS28 CFS-28 2400-28 SW28 SW-28 M2400-28
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
26.5mm
Shaft Size:
28mm
Technical
d1 28mm
s 1.5mm (Tolerance -0.1)
b 2.3mm (Tolerance -0.1)
d3 max. 26.5mm
d2 27mm (Tolerance - 0.13)
m min. 1.6mm
FN 7.2 kN
FR 29.3 kN
n det x1000 15 rpm
