SKU: SY1.1/2TF/VA201-SKF

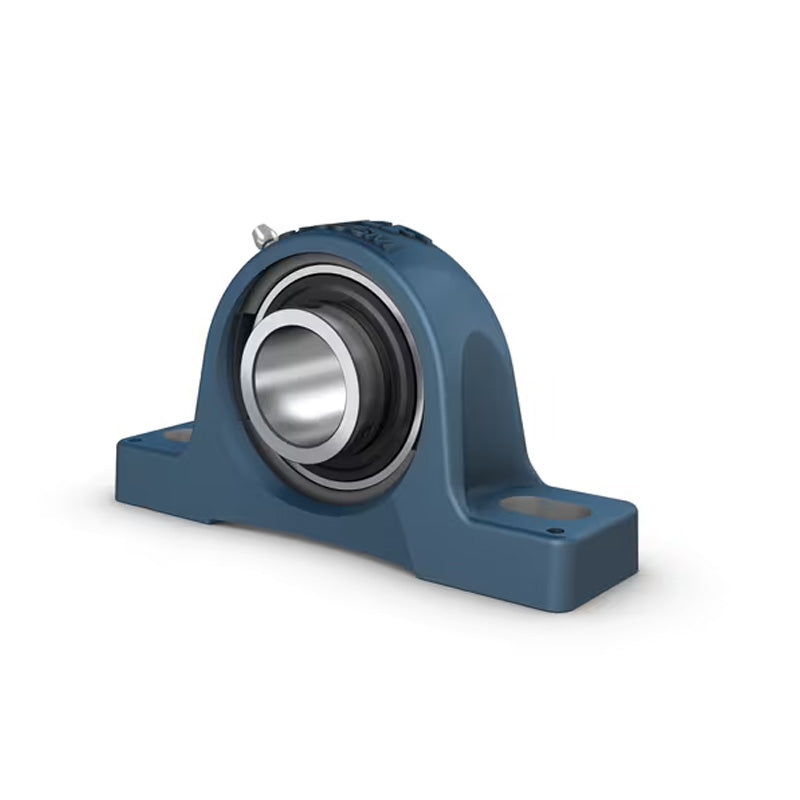

SKF SY11/2TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/2 inch
SKF SY11/2TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/2 inch
Regular price
€281,95
ex VAT
Regular price
Sale price
€281,95
ex VAT
In stock
Price Break
10+
€214,32
19+
€202,28
29+
€199,87
39+
€197,46
49+
€195,05
74+
€192,65
99+
€180,61
199+
€178,20
249+
€175,79
499+
€173,38
999+
€168,56
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A | 48mm |
| B | 49.2mm |
| H | 99mm |
| H1 | 49.2mm |
| H2 | 19mm |
| J | 135.5mm |
| L | 175mm |
| N | 24.5mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 30.2mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 19 kN |
| Weight | 1.84 kg |
