SKU: SY1.3/4TF/VA228-SKF

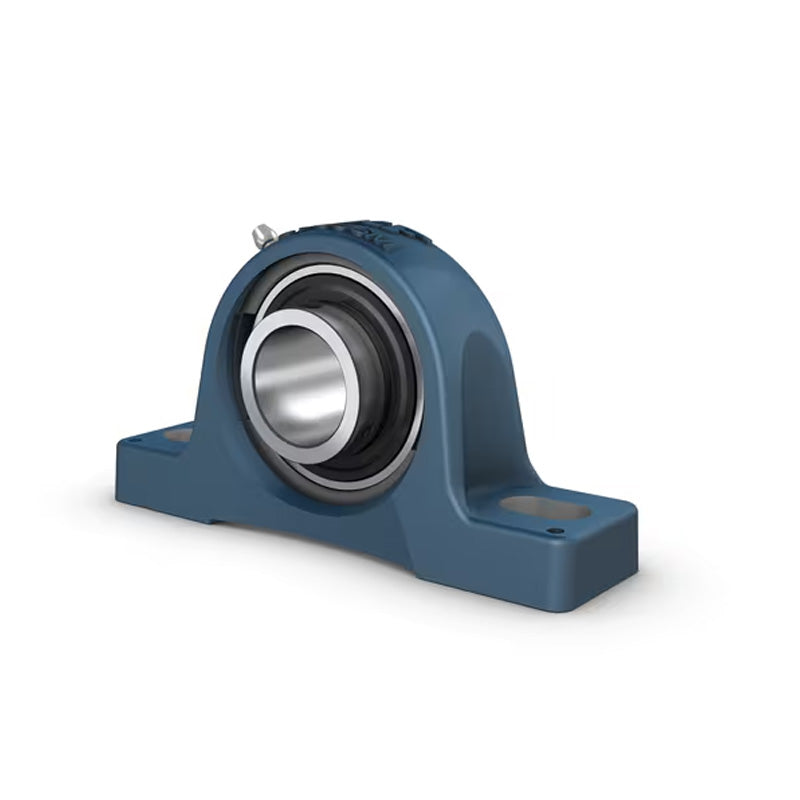

SKF SY13/4TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch
SKF SY13/4TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch
Regular price
€342,95
ex VAT
Regular price
Sale price
€342,95
ex VAT
In stock
Price Break
10+
€260,56
19+
€245,92
29+
€242,99
39+
€240,06
49+
€237,14
74+
€234,21
99+
€219,57
199+
€216,64
249+
€213,71
499+
€210,79
999+
€204,93
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A | 48mm |
| B | 49.2mm |
| H | 107mm |
| H1 | 54mm |
| H2 | 20.6mm |
| J | 143.5mm |
| L | 187mm |
| N | 22.5mm |
| N1 | 14.5mm |
| G | 12mm |
| S1 | 30.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.32 kg |
