SKU: SY2.3/16TF/VA228-SKF

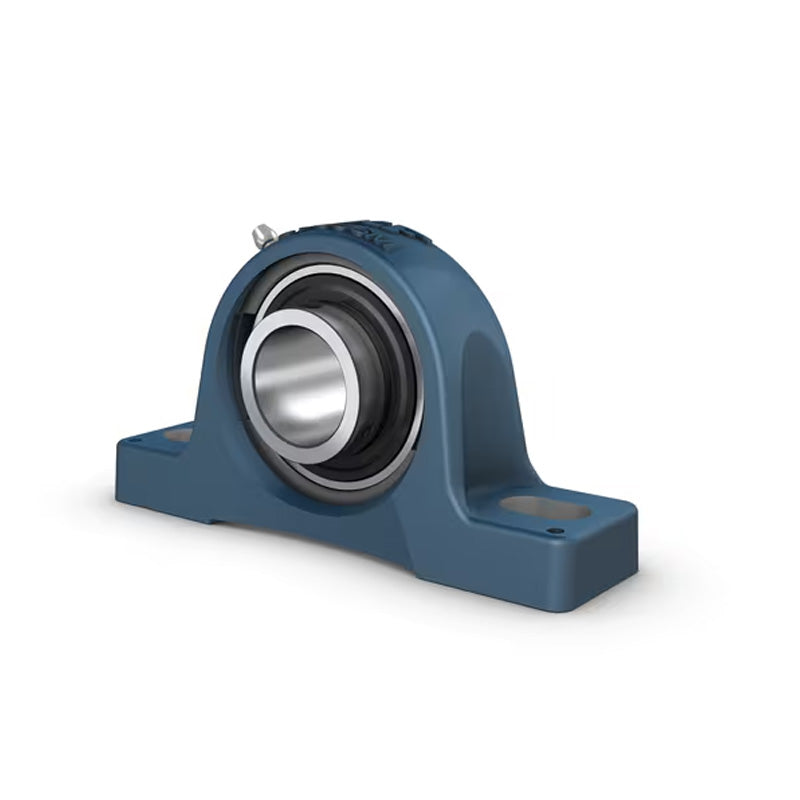

SKF SY23/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-3/16 inch
SKF SY23/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-3/16 inch
Regular price
€425,86
ex VAT
Regular price
Sale price
€425,86
ex VAT
In stock
Price Break
10+
€379,02
19+
€357,72
29+
€353,46
39+
€349,21
49+
€344,95
74+
€340,69
99+
€319,40
199+
€315,14
249+
€310,88
499+
€306,62
999+
€298,10
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| A | 60mm |
| B | 55.6mm |
| H | 127mm |
| H1 | 63.5mm |
| H2 | 23.8mm |
| J | 171.5mm |
| L | 219mm |
| N | 27.5mm |
| N1 | 18mm |
| G | 16mm |
| S1 | 33.4mm |
| Dynamic load C | 25 kN |
| Static load Co | 29 kN |
| Weight | 3.7 kg |
