SKU: SY45TF/VA228-SKF

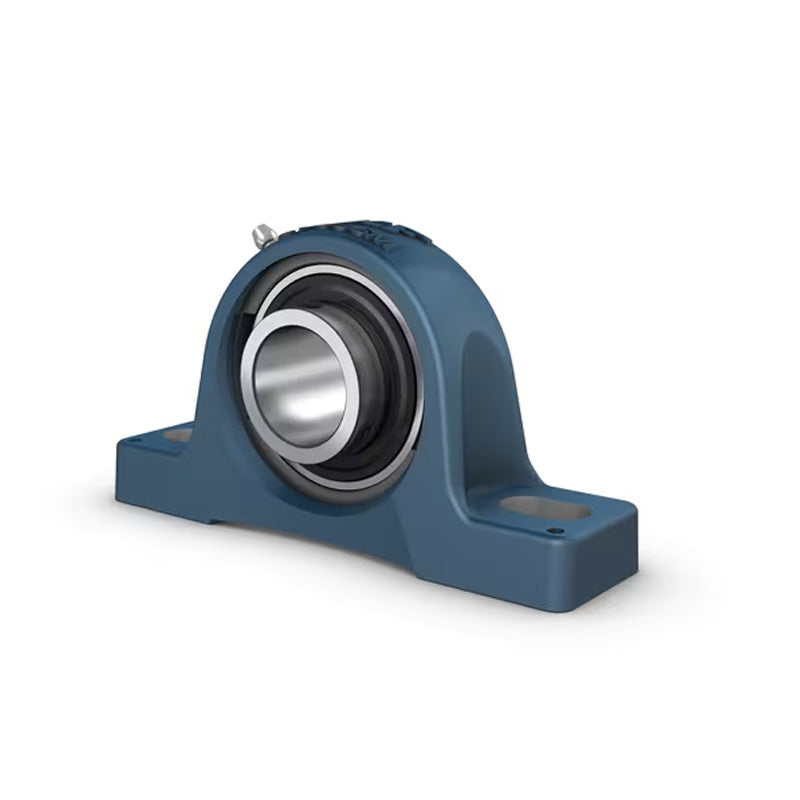

SKF SY45TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 45mm

Name: SKF SY45TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 45mm
Brand: SKF
SKU: SY45TF/VA228-SKF
Price: 380.95 EUR
Availability: InStock

€380,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €289,52

19+ €273,26

29+ €270,01

39+ €266,75

49+ €263,50

74+ €260,25

99+ €243,98

199+ €240,73

249+ €237,47

499+ €234,22

999+ €227,72

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 45mm
Temperature Range:: High Temp

Technical

d	45mm
A	48mm
B	49.2mm
H	107mm
H1	54mm
H2	20.6mm
J	143.5mm
L	187mm
N	22.5mm
N1	14mm
G	12mm
S1	30.2mm
Dynamic load C	33.2 kN
Static load Co	21.6 kN
Weight	2.3 kg
