SKU: SY50TF/VA201-SKF

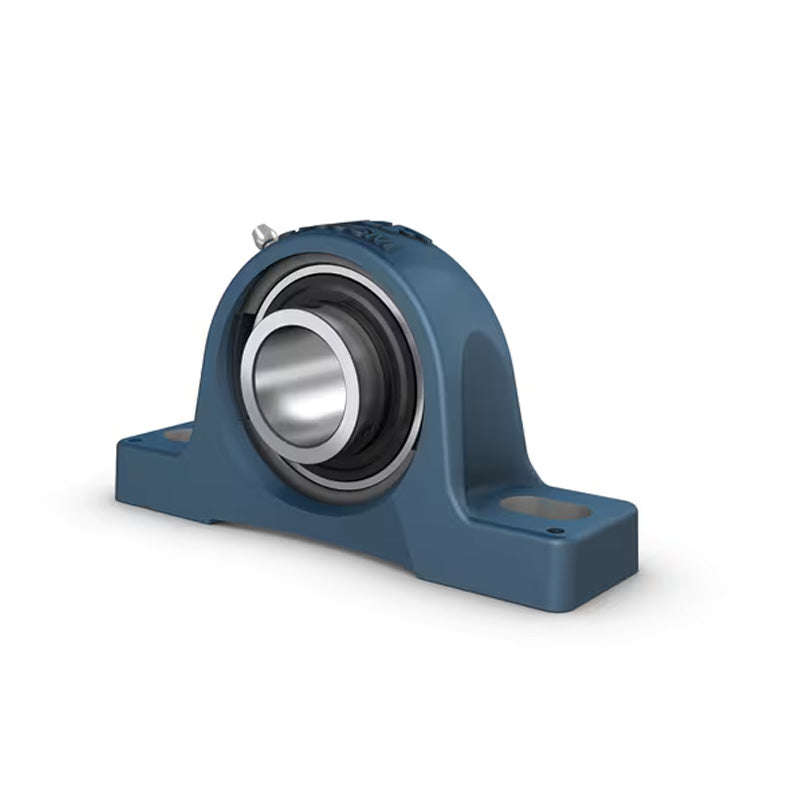

SKF SY50TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 50mm
SKF SY50TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 50mm
Regular price
€348,95
ex VAT
Regular price
Sale price
€348,95
ex VAT
In stock
Price Break
10+
€265,69
19+
€250,76
29+
€247,78
39+
€244,79
49+
€241,81
74+
€238,82
99+
€223,90
199+
€220,91
249+
€217,93
499+
€214,94
999+
€208,97
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 50mm |
|---|---|
| A | 54mm |
| B | 51.6mm |
| H | 114mm |
| H1 | 57.2mm |
| H2 | 22mm |
| J | 157mm |
| L | 203mm |
| N | 26mm |
| N1 | 18mm |
| G | 16mm |
| S1 | 32.6mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 23.2 kN |
| Weight | 2.69 kg |
