SKU: SYFJ50TF-MB

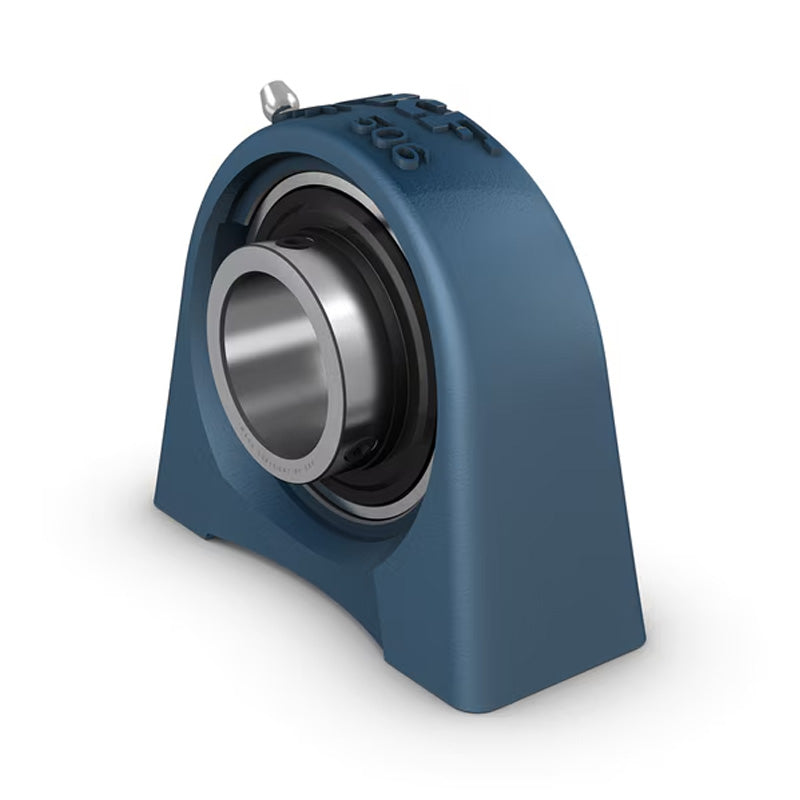

Major Brand SYFJ50TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 50mm
Major Brand SYFJ50TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 50mm
Regular price
€88,95
ex VAT
Regular price
Sale price
€88,95
ex VAT
Equivalent to: M-UCUP210D1
In stock
Price Break
10+
€67,02
20+
€63,25
30+
€62,50
40+
€61,75
50+
€60,99
75+
€60,24
100+
€56,47
200+
€55,72
250+
€54,97
500+
€54,22
1000+
€52,71
Description
Description
|
Major Branded Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
Equivalent: M-UCUP210D1
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 50mm
- Style:
- SYFJ
- Bolt Hole Centres:
- 94mm
Technical
Technical
| d | 50mm |
|---|---|
| A | 60mm |
| A1 | 35.5mm |
| B | 51.6mm |
| H | 117mm |
| H1 | 57.2mm |
| H2 | 14mm |
| J | 94mm |
| L | 130mm |
| G | M16 |
| G1 | 25mm |
| s1 | 32.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.3 kg |
| Housing | SYFJ510 |
| Insert | YAR210-2F |
