SKU: TA.1416.Z-EU

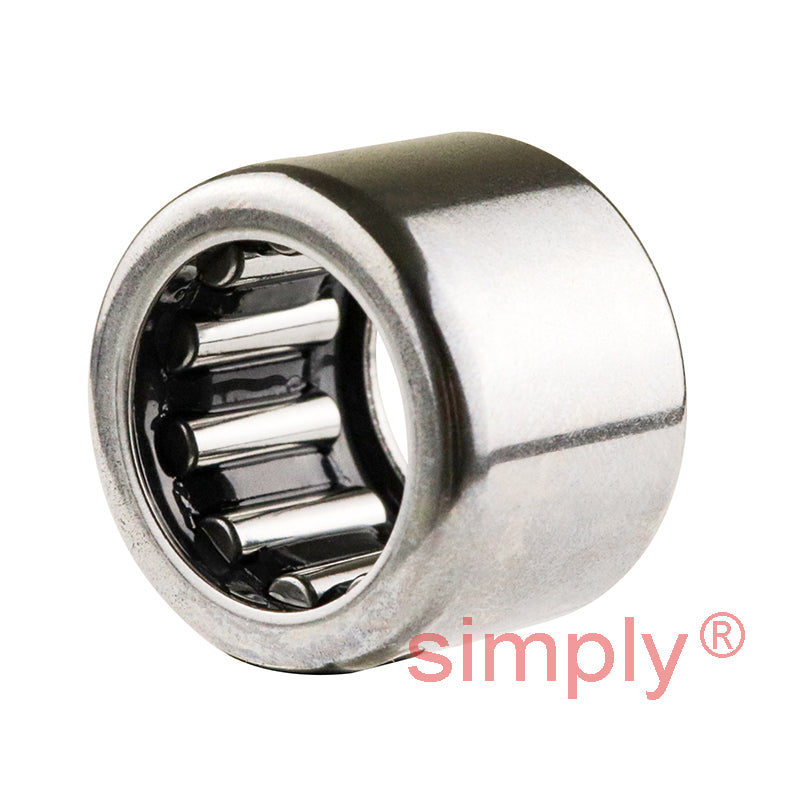

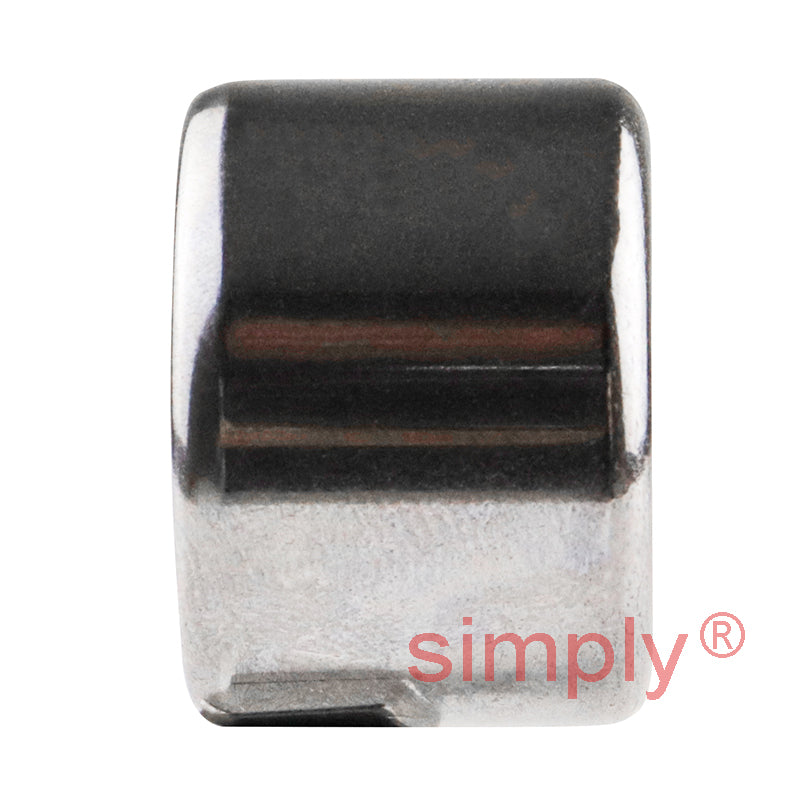

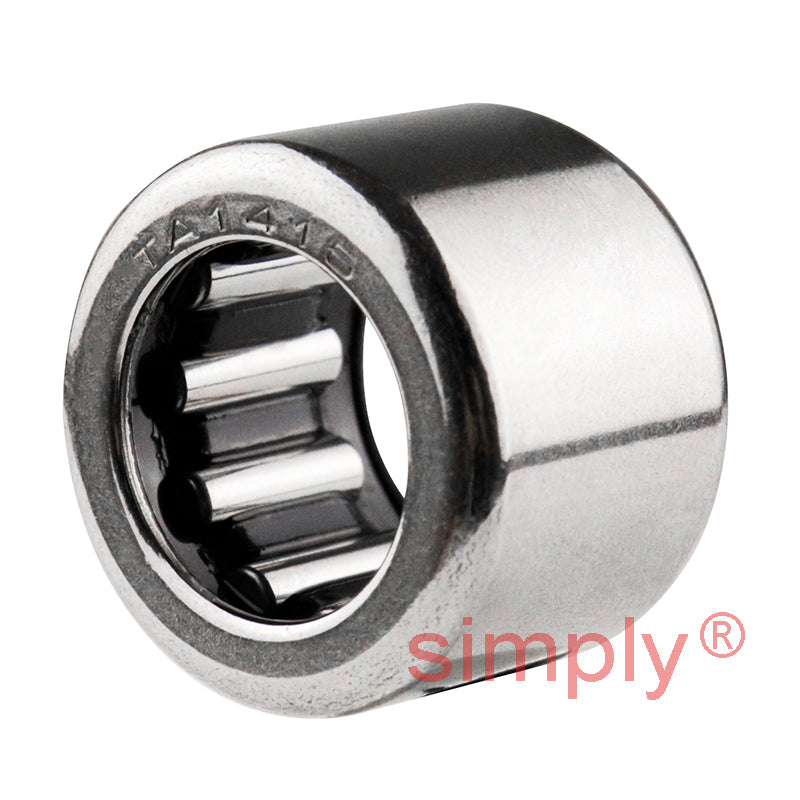

Premier Budget TA1416Z Needle Roller Bearing Open End Type 14x22x16mm
Premier Budget TA1416Z Needle Roller Bearing Open End Type 14x22x16mm
Regular price
€3,26
ex VAT
Regular price
Sale price
€3,26
ex VAT
Equivalent to: HMK1416
In stock
Price Break
10+
€2,90
19+
€2,74
29+
€2,71
39+
€2,67
49+
€2,64
74+
€2,61
99+
€2,45
199+
€2,41
249+
€2,38
499+
€2,35
999+
€2,28
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1416
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 22mm |
| C | 16mm |
| Dynamic load | 10500N |
| Static load | 12000N |
| Inner race | IRT1016-2 |
| Weight | 18.4g |
