SKU: TA.3825.Z-EU

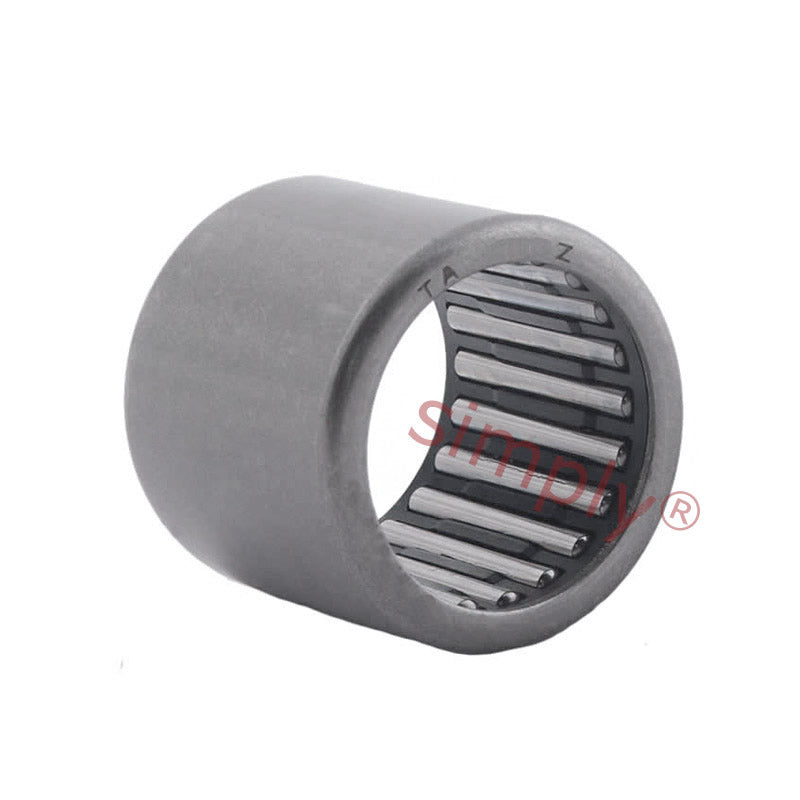

Premier Budget TA3825Z Needle Roller Bearing Open End Type 38x48x25mm
Premier Budget TA3825Z Needle Roller Bearing Open End Type 38x48x25mm
Regular price
€11,26
ex VAT
Regular price
Sale price
€11,26
ex VAT
Equivalent to: HMK3825
In stock
Price Break
10+
€10,02
19+
€9,46
29+
€9,35
39+
€9,23
49+
€9,12
74+
€9,01
99+
€8,45
199+
€8,33
249+
€8,22
499+
€8,11
999+
€7,88
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3825
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 48mm
- Width:
- 25mm
Technical
Technical
| Fw | 38mm |
|---|---|
| D | 48mm |
| C | 25mm |
| Dynamic load | 35600N |
| Static load | 63100N |
| Inner race | IRT3225-1 |
| Weight | 82.5g |
