SKU: TA.815.Z-EU

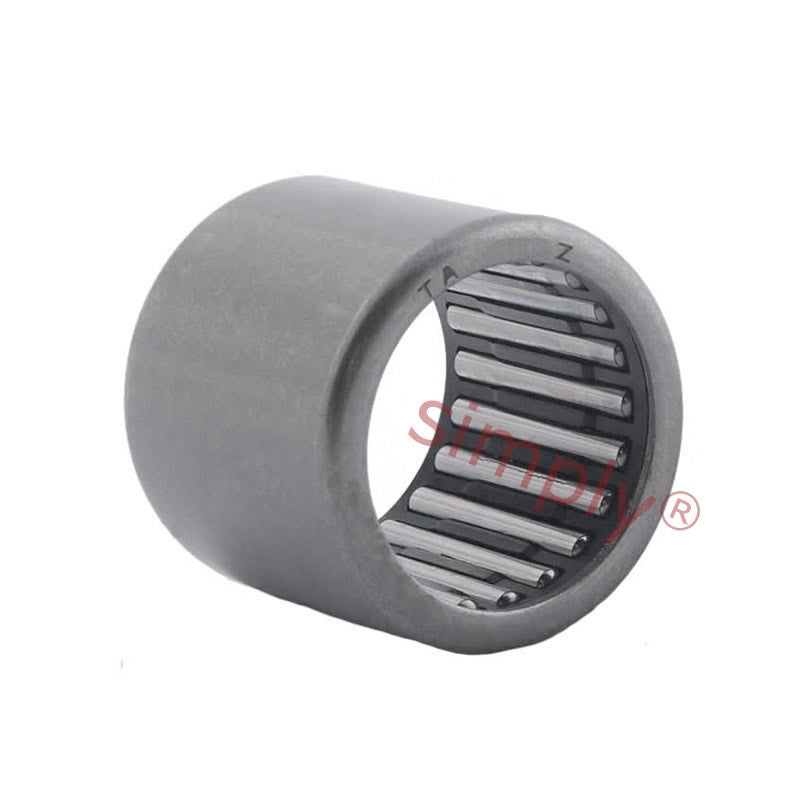

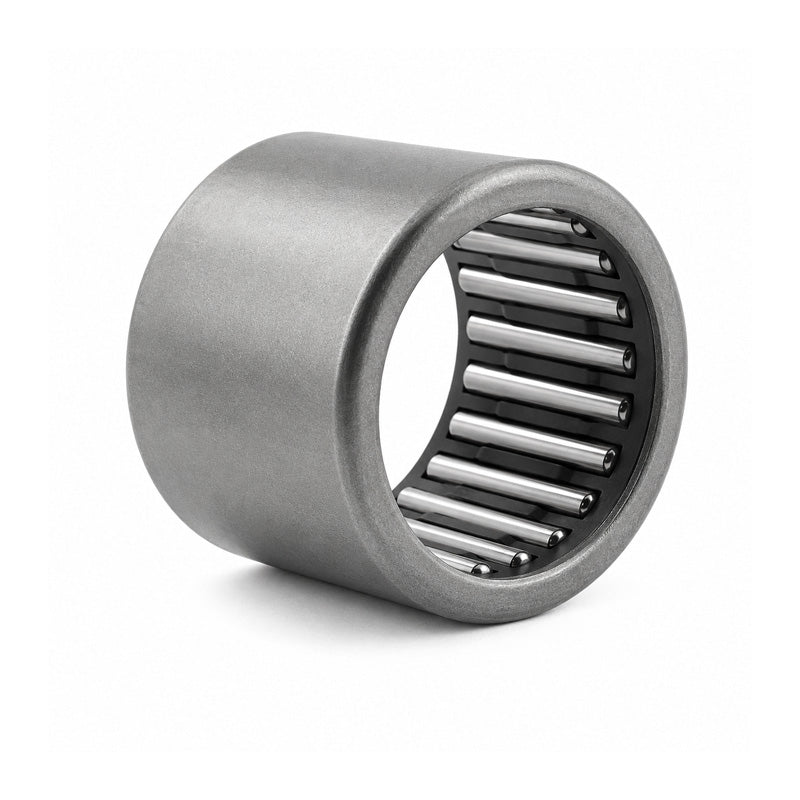

Premier Budget TA815Z Needle Roller Bearing Open End Type 8x15x15mm
Premier Budget TA815Z Needle Roller Bearing Open End Type 8x15x15mm
Regular price
€9,22
ex VAT
Regular price
Sale price
€9,22
ex VAT
Equivalent to: HMK0815 HMK815
In stock
Price Break
10+
€8,21
19+
€7,74
29+
€7,65
39+
€7,56
49+
€7,47
74+
€7,38
99+
€6,92
199+
€6,82
249+
€6,73
499+
€6,64
999+
€6,45
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK0815 HMK815
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 15mm
- Width:
- 15mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 15mm |
| C | 15mm |
| Dynamic load | 5780N |
| Static load | 5570N |
| Weight | 9.7g |
