SKU: TAM.1512

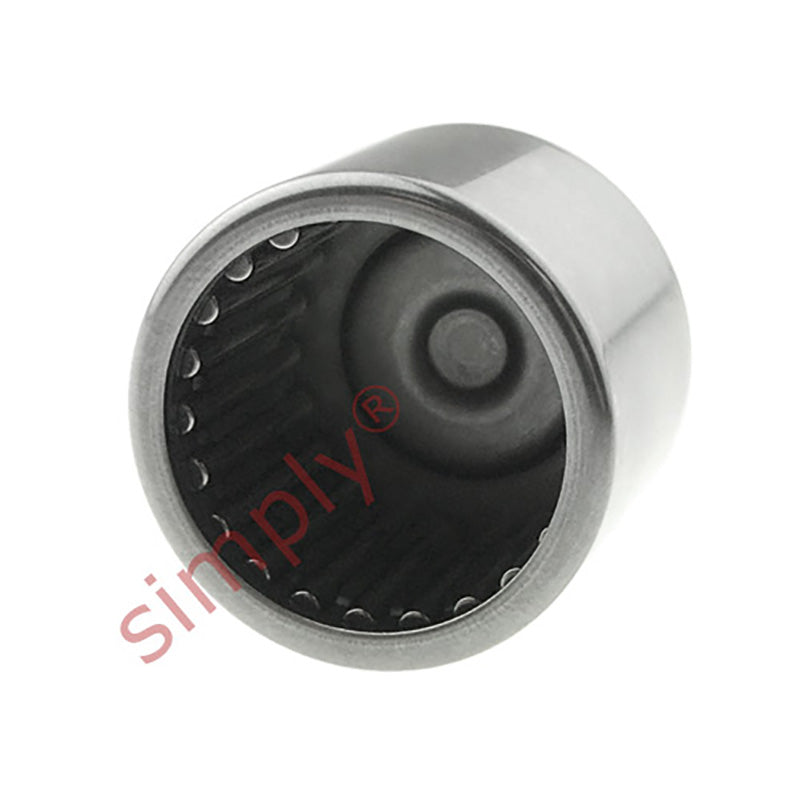

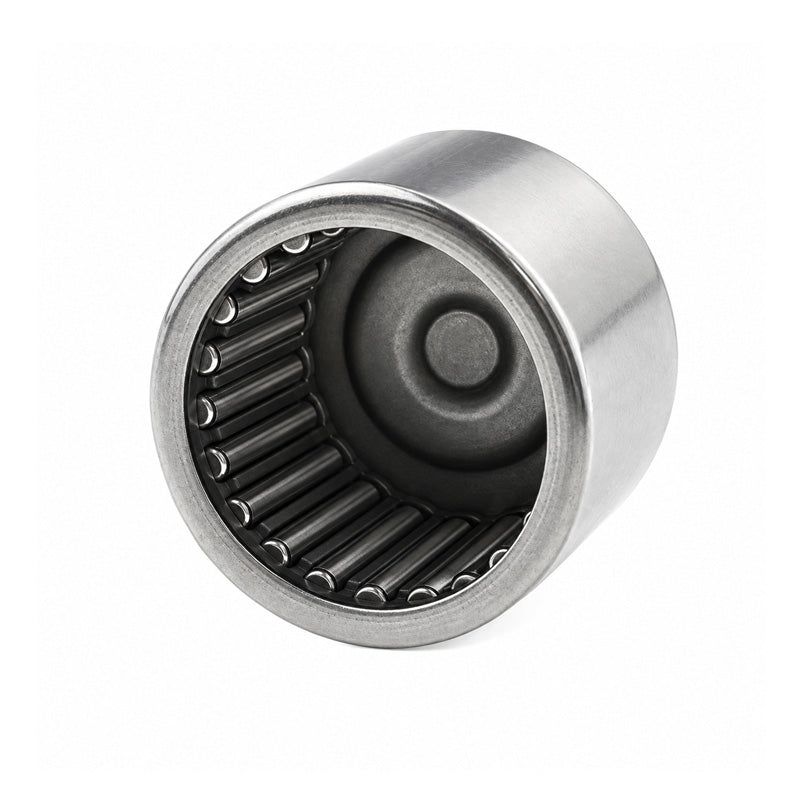

IKO TAM1512 Needle Roller Bearing Closed End Type 15x22x12mm

Name: IKO TAM1512 Needle Roller Bearing Closed End Type 15x22x12mm
Brand: IKO
SKU: TAM.1512
Price: 9.17 EUR
Availability: InStock

€9,17 ex VAT

Sale Sold out

In stock

Price Break

10+ €8,16

19+ €7,70

29+ €7,61

39+ €7,52

49+ €7,43

74+ €7,34

99+ €6,88

199+ €6,79

249+ €6,69

499+ €6,60

999+ €6,42

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

TAM Series Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.

Brand / Quality:: IKO - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 22mm
Width:: 12mm

Technical

Fw	15mm
D	22mm
C	12mm
Dynamic load	7120 N
Static load	8310 N
Inner ring	IRT 1012-1
Weight	14.3 g
