SKU: TEN-ARM-SE11-DUN

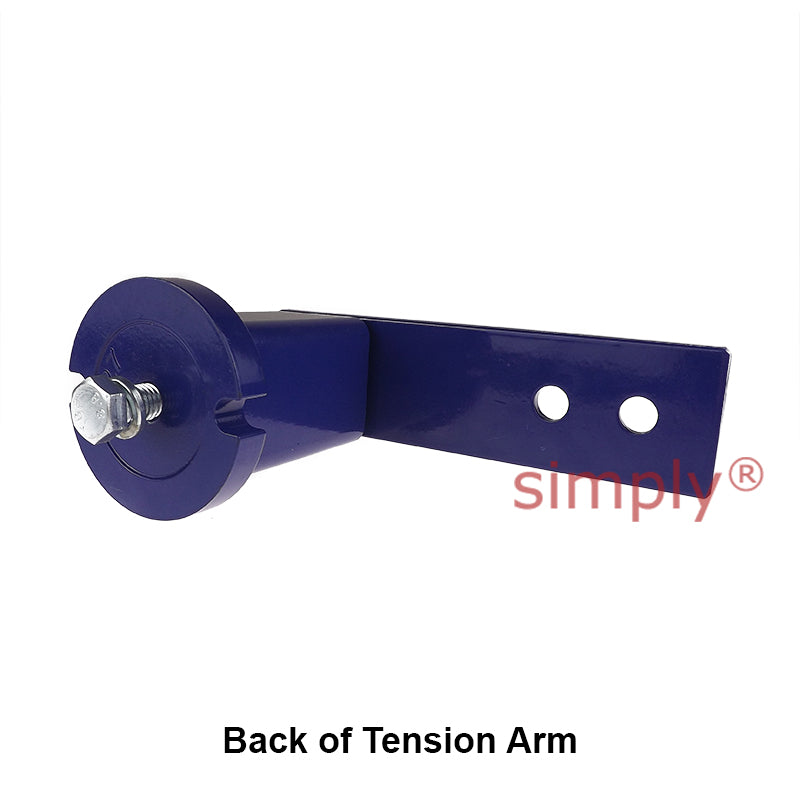

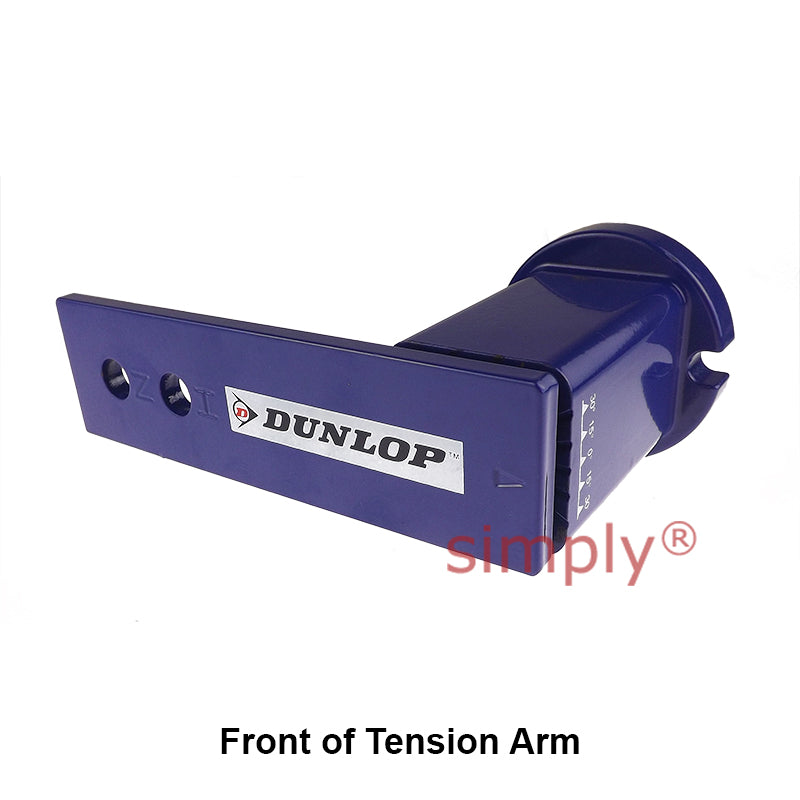

Dunlop SE11 Chain and V-Belt Tension Arm
Dunlop SE11 Chain and V-Belt Tension Arm
Regular price
€25,52
ex VAT
Regular price
Sale price
€25,52
ex VAT
In stock
Price Break
10+
€22,71
19+
€21,44
29+
€21,18
39+
€20,93
49+
€20,67
74+
€20,42
99+
€19,14
199+
€18,88
249+
€18,63
499+
€18,37
999+
€17,86
Couldn't load pickup availability
Description
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M6
- Part No:
- SE11
Technical
Technical
| Part No. | SE11 |
|---|---|
| D | 35mm |
| E | 51 (+1/-0.5)mm |
| G | 5mm |
| H | M6 |
| J<sup>1</sup> | 80mm |
| J<sup>2</sup> | 60mm |
| K | 20mm |
| L | 90mm |
| M | 20mm |
| N | 22mm |
| O | 6mm |
| P | 8mm |
| T | 8.5mm |
| U | 16.5mm |
