SKU: TEN-ARM-SE15-DUN

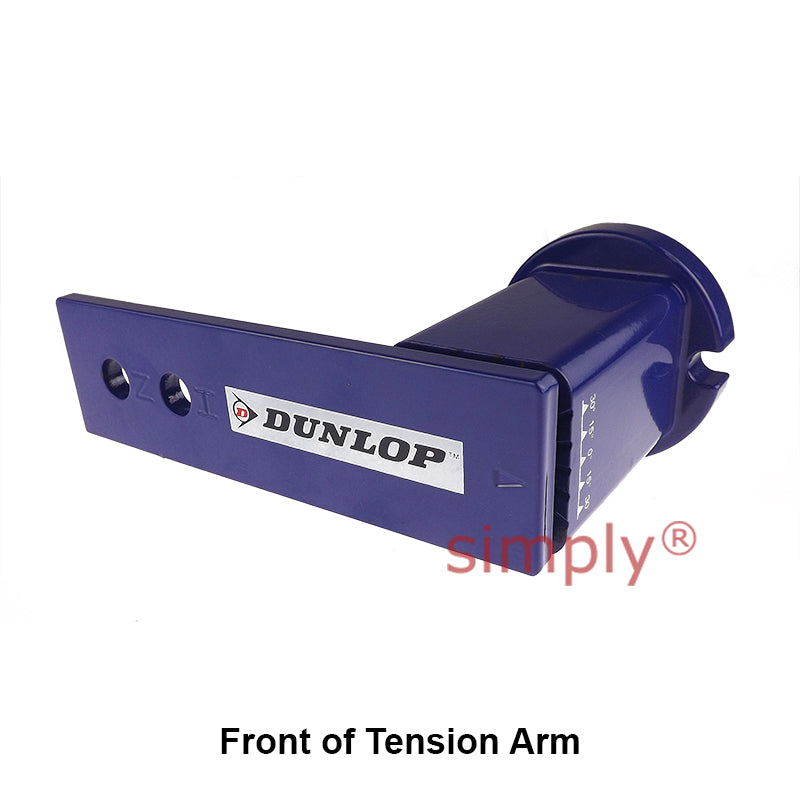

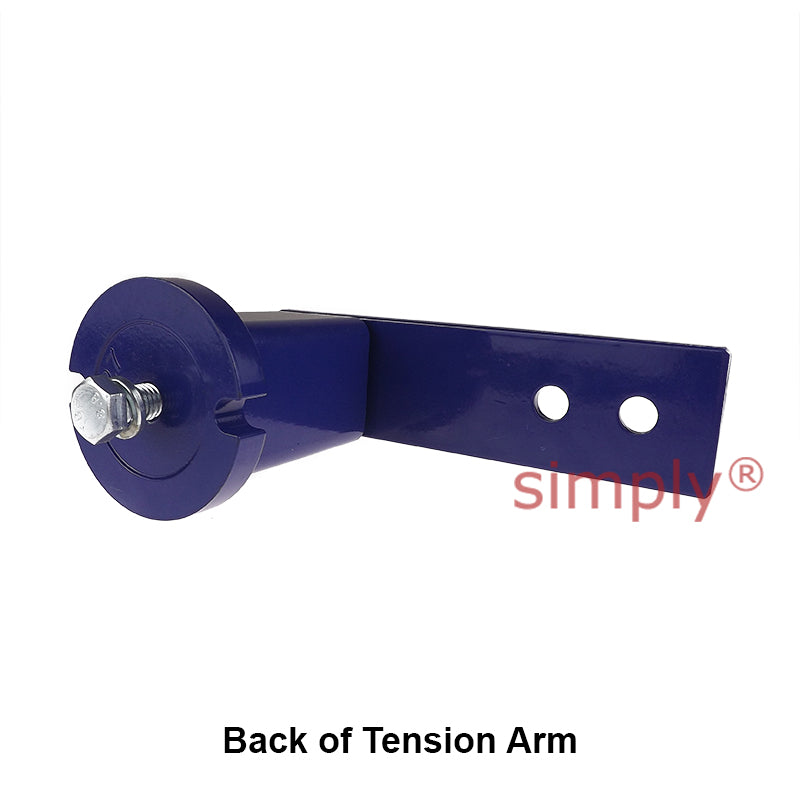

Dunlop SE15 Chain and V-Belt Tension Arm
Dunlop SE15 Chain and V-Belt Tension Arm
Regular price
€28,55
ex VAT
Regular price
Sale price
€28,55
ex VAT
In stock
Price Break
10+
€25,41
19+
€23,98
29+
€23,70
39+
€23,41
49+
€23,13
74+
€22,84
99+
€21,41
199+
€21,13
249+
€20,84
499+
€20,56
999+
€19,99
Couldn't load pickup availability
Description
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M8
- Part No:
- SE15
Technical
Technical
| Part No. | SE15 |
|---|---|
| D | 45mm |
| E | 64 (+1/-0.5)mm |
| G | 5mm |
| H | M8 |
| J<sup>1</sup> | 100mm |
| J<sup>2</sup> | 100mm |
| K | 25mm |
| L | 112.5mm |
| M | 25mm |
| N | 30mm |
| O | 8mm |
| P | 8.5mm |
| T | 10.5mm |
| U | 20.8mm |
