SKU: TRE1625

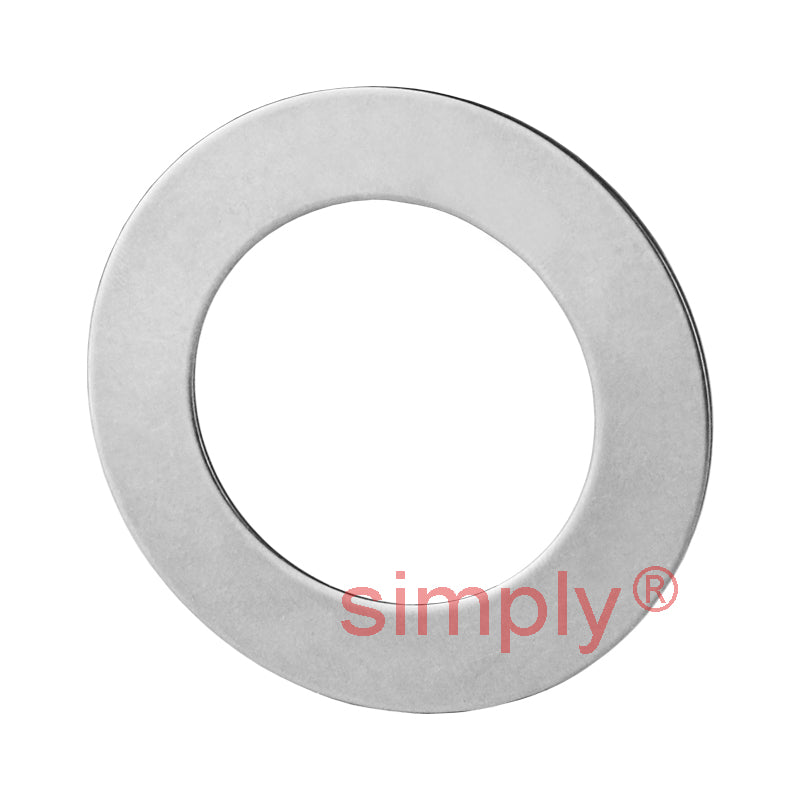

TRE1625 Needle Roller Thrust Washer 1x1.563x0.156 inch
TRE1625 Needle Roller Thrust Washer 1x1.563x0.156 inch
Regular price
€3,95
ex VAT
Regular price
Sale price
€3,95
ex VAT
In stock
Price Break
10+
€2,43
19+
€2,29
29+
€2,27
39+
€2,24
49+
€2,21
74+
€2,18
99+
€2,05
199+
€2,02
249+
€1,99
499+
€1,97
999+
€1,91
Description
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Width:
- 3.97mm = 0.156 (5/32) inch
Technical
Technical
| d | 1 inch |
|---|---|
| d1 | 1.563 inch |
| h min | 0.156 inch |
| h max | 0.157 inch |
| Bearing | NTA1625 |
| Pilot min | 0.997 inch |
| Pilot max | 1.000 inch |
| Dia to clear washer | 1.594 inch |
| Weight | 0.047 lbs |
