SKU: TU2.3/16TF-SKF

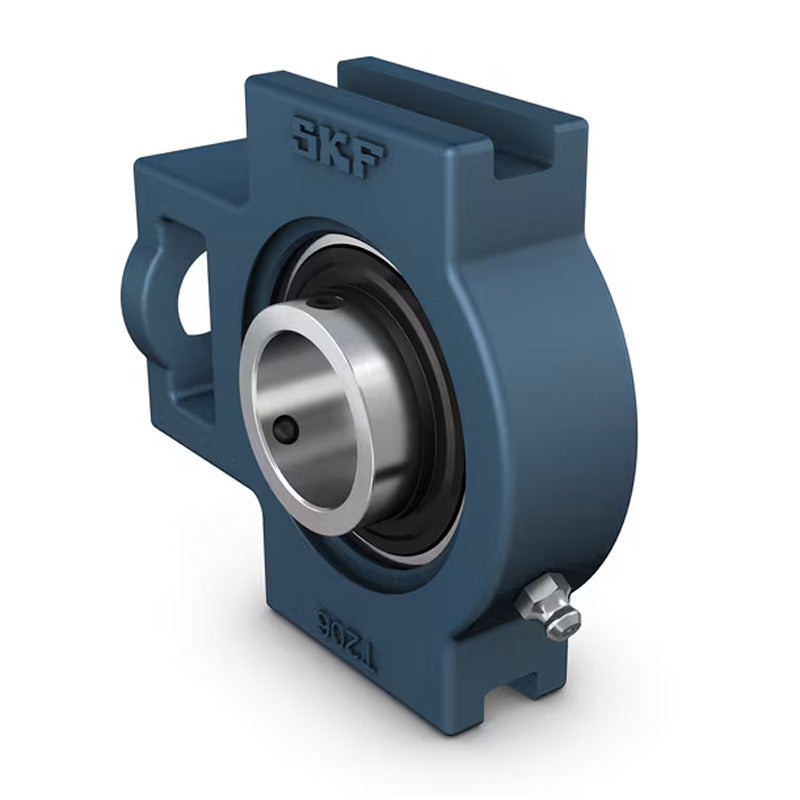

SKF TU2-3/16TF Grub Screw Type Take Up Unit 2-3/16 inch Bore
SKF TU2-3/16TF Grub Screw Type Take Up Unit 2-3/16 inch Bore
Regular price
€189,95
ex VAT
Regular price
Sale price
€189,95
ex VAT
In stock
Price Break
10+
€144,50
20+
€136,38
30+
€134,75
40+
€133,13
50+
€131,51
75+
€129,88
100+
€121,77
200+
€120,14
250+
€118,52
500+
€116,90
1000+
€113,65
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- TU
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| A | 64mm |
| A1 | 27mm |
| A2 | 41mm |
| B | 55.6mm |
| D1 | 35mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 171mm |
| L1 | 106mm |
| L2 | 19mm |
| L3 | 95mm |
| N | 64mm |
| N1 | 25mm |
| s1 | 33.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 3.8 kg |
