SKU: TU35FM-SKF

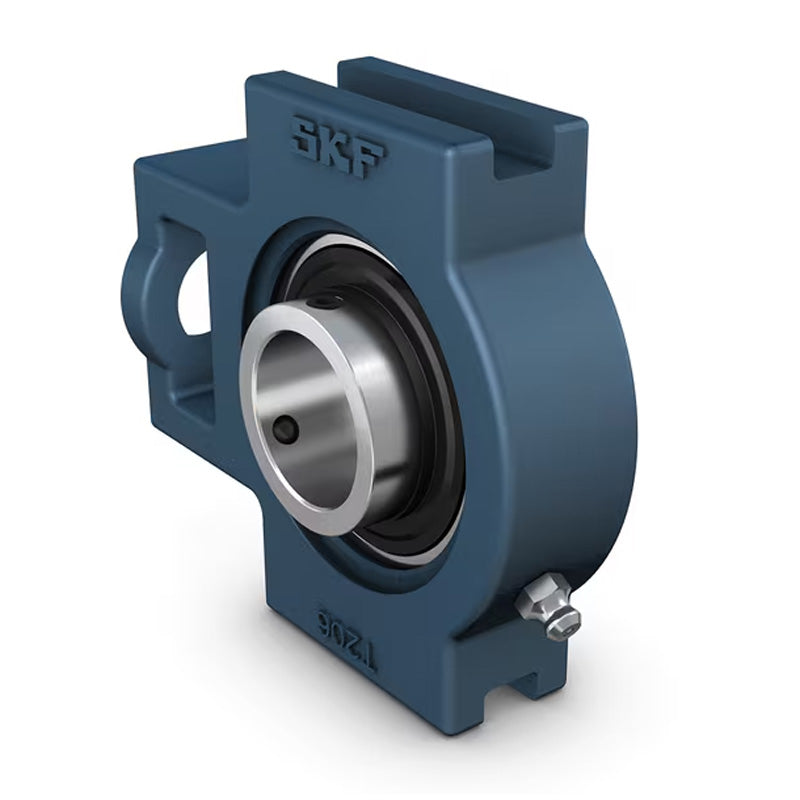

SKF TU35FM Eccentric Locking Collar Take Up Unit 35mm Bore
SKF TU35FM Eccentric Locking Collar Take Up Unit 35mm Bore
Regular price
€99,95
ex VAT
Regular price
Sale price
€99,95
ex VAT
In stock
Price Break
10+
€75,38
20+
€71,15
30+
€70,30
40+
€69,45
50+
€68,61
75+
€67,76
100+
€63,52
200+
€62,68
250+
€61,83
500+
€60,98
1000+
€59,29
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and an Eccentric Locking Collar: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- TU
Technical
Technical
| d | 35mm |
|---|---|
| A | 37mm |
| A1 | 13.5mm |
| A2 | 30mm |
| B1 | 38.9mm |
| D1 | 22mm |
| H | 103mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 12mm |
| L3 | 64mm |
| N | 38mm |
| N1 | 17mm |
| s1 | 29.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 1.45 kg |
| Compatible end cover | ECY207 |
