SKU: TUJ40TF-SKF

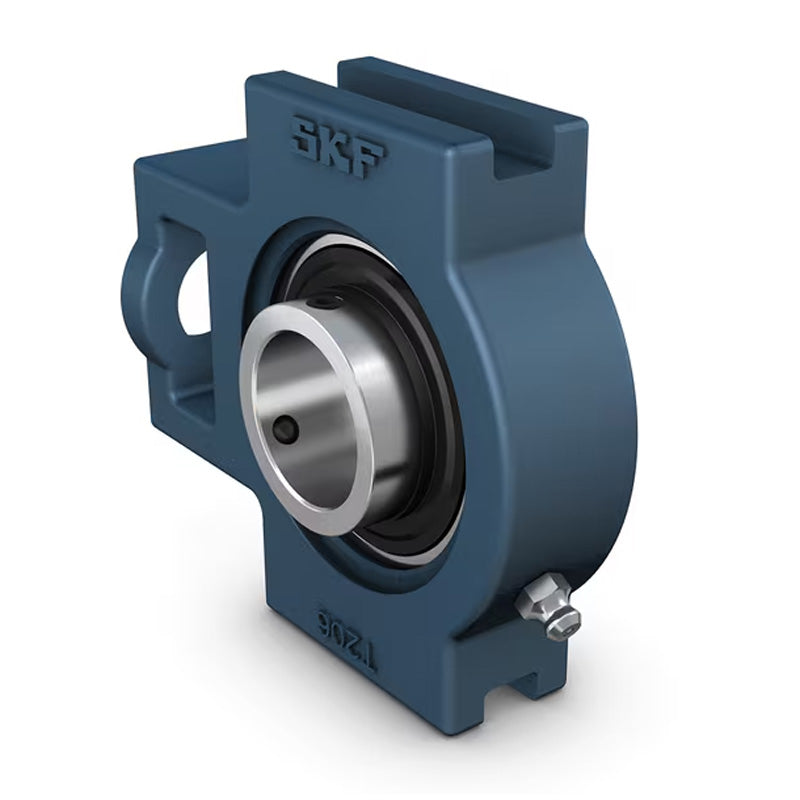

SKF TUJ40TF Grub Screw Type Take Up Unit 40mm Bore
SKF TUJ40TF Grub Screw Type Take Up Unit 40mm Bore
Regular price
€99,54
ex VAT
Regular price
Sale price
€99,54
ex VAT
In stock
Price Break
10+
€88,59
19+
€83,61
29+
€82,62
39+
€81,62
49+
€80,63
74+
€79,63
99+
€74,66
199+
€73,66
249+
€72,66
499+
€71,67
999+
€69,68
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- TUJ
Technical
Technical
| d | 40mm |
|---|---|
| A | 49mm |
| A1 | 16mm |
| A2 | 33mm |
| B | 49.2mm |
| D1 | 29mm |
| H | 115mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 145mm |
| L1 | 88mm |
| L2 | 15mm |
| L3 | 83mm |
| N | 50mm |
| N1 | 19mm |
| s1 | 30.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 2.35 kg |
