SKU: TUJ55TF-SKF

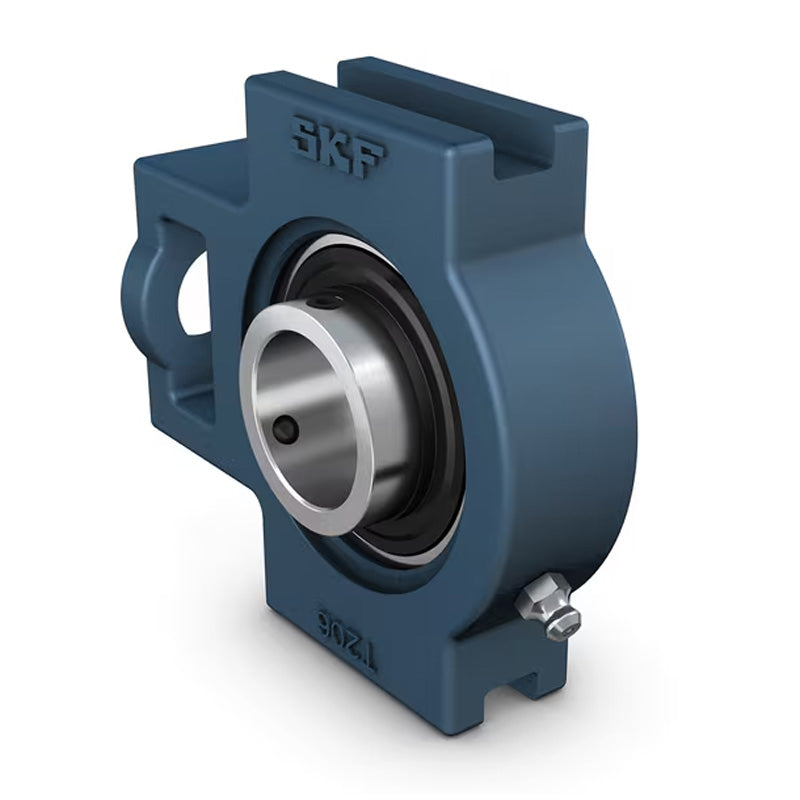

SKF TUJ55TF Grub Screw Type Take Up Unit 55mm Bore
SKF TUJ55TF Grub Screw Type Take Up Unit 55mm Bore
Regular price
€190,71
ex VAT
Regular price
Sale price
€190,71
ex VAT
In stock
Price Break
10+
€169,73
19+
€160,20
29+
€158,29
39+
€156,38
49+
€154,48
74+
€152,57
99+
€143,03
199+
€141,13
249+
€139,22
499+
€137,31
999+
€133,50
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- TUJ
Technical
Technical
| d | 55mm |
|---|---|
| A | 64mm |
| A1 | 22mm |
| A2 | 41mm |
| B | 55.6mm |
| D1 | 35mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 171mm |
| L1 | 106mm |
| L2 | 19mm |
| L3 | 95mm |
| N | 64mm |
| N1 | 25mm |
| s1 | 33.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 4 kg |
