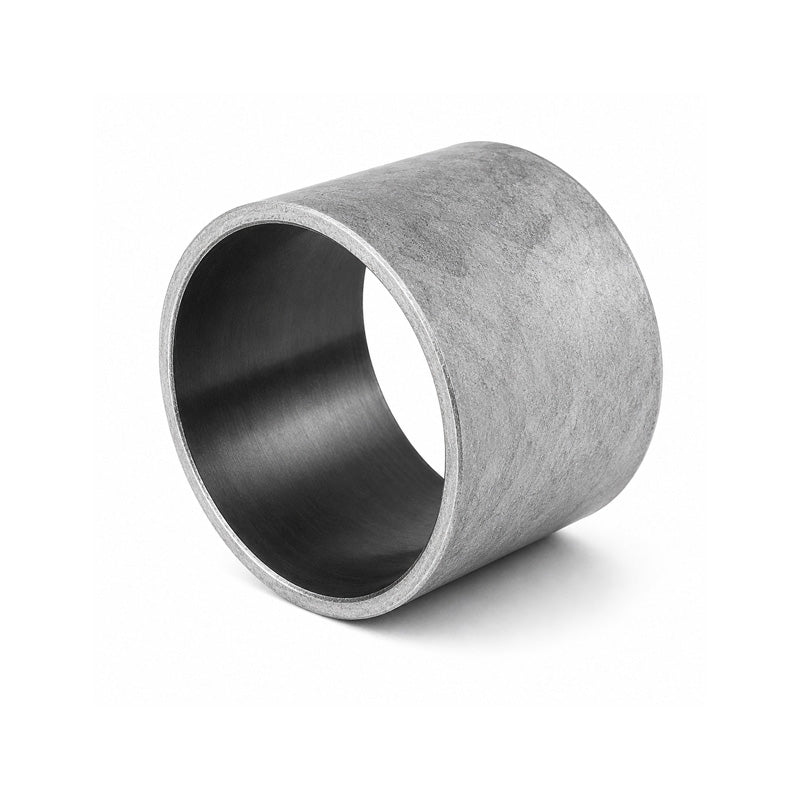

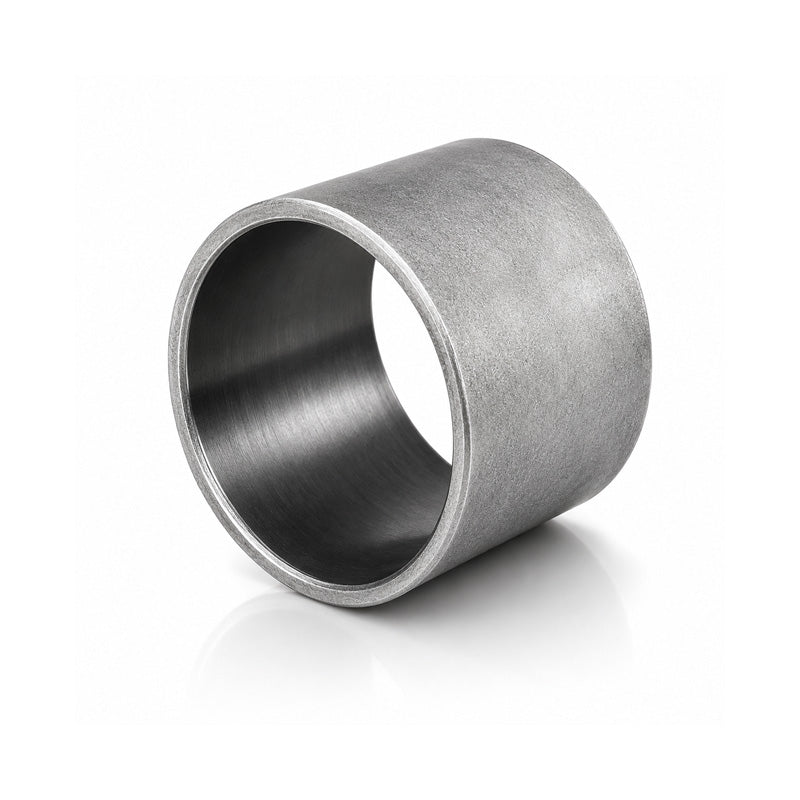

Igus igutex TX1SM150165150 Metric Filament Wound Plain Bush 150x165x150mm - Allow 2-3 Days

IGUS igutex TX1 Filament Wound Bushing: TX1 Bushings are self-lubricating, heavy-duty bearings made from a unique combination of mineral materials, synthetic resins, and additives, bonded under high pressure and temperature to create durable composite fibre plain bearings. The tough fibreglass fabric outer layer protects an inner layer designed to minimize friction and wear. These bushings consist of two layers: a gliding layer, constructed from filament fabric with integrated solid lubricants, guarantees maintenance-free operation with very low friction. The base layer, fortified with resilient filament fabrics, offers excellent protection to the inner layer optimized for sliding performance. TX1 plain bearings represent very high load capacity, up to 200MPa in a static environment and up to 140MPa in a dynamic environment.
Benefits: High load carrying capacity, corrosion-resistant, excellent electrical insulator, maintenance and lubrication-free

Brand / Quality:

Igus - High Quality

Inside Diameter:

150mm

Outside Diameter:

165mm

Width:

150mm
