SKU: UC.206

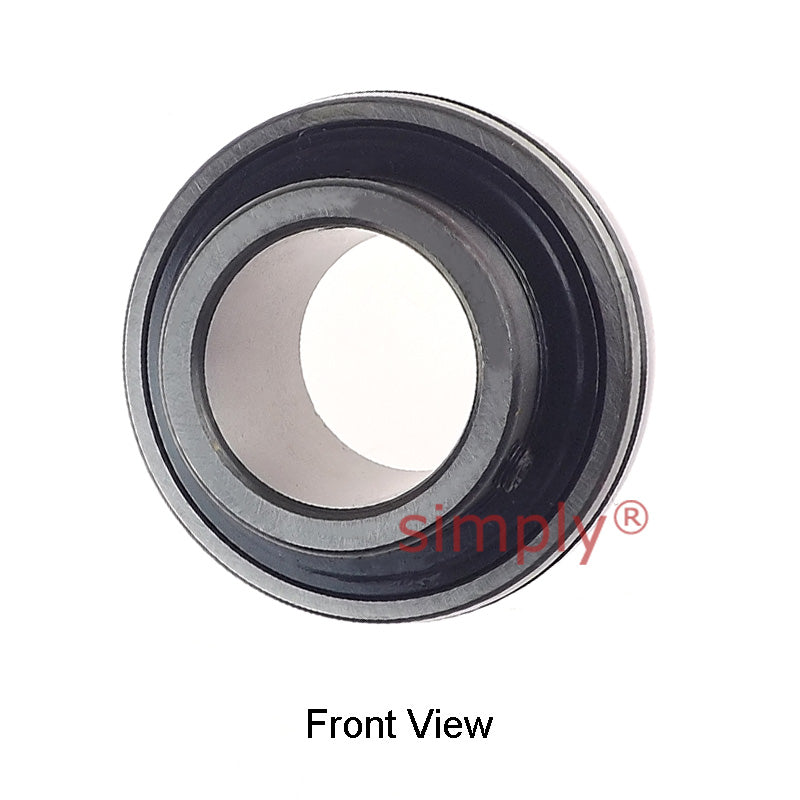

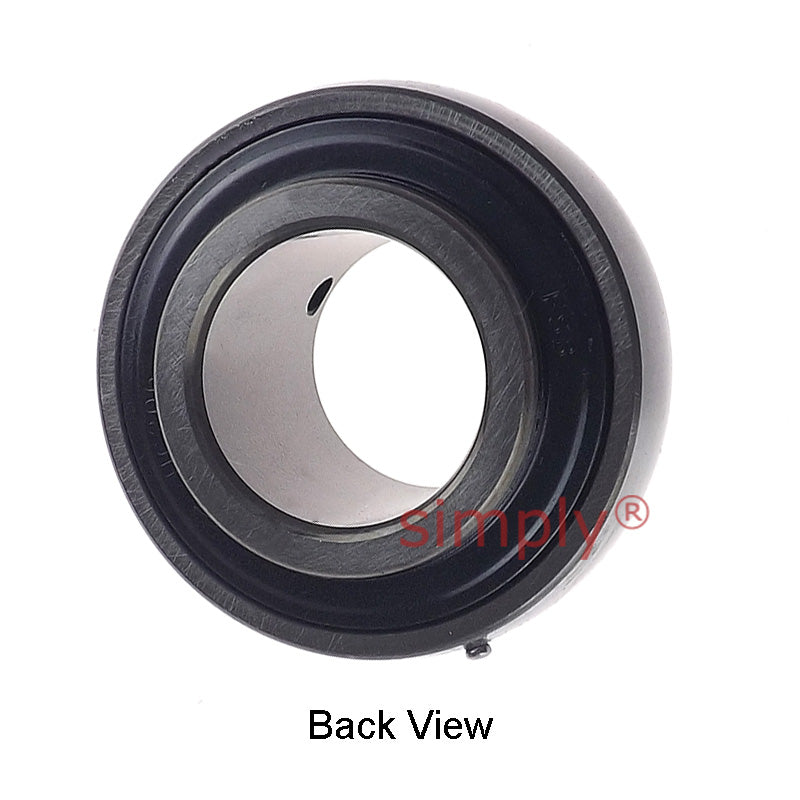

UC206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
UC206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
Regular price
€8,95
ex VAT
Regular price
Sale price
€8,95
ex VAT
Equivalent to: 1030-30G
In stock
Price Break
3+
€6,25
4+
€5,90
9+
€5,83
19+
€5,76
49+
€5,69
99+
€5,62
499+
€5,27
999+
€5,20
1999+
€5,13
2999+
€5,06
4999+
€4,92
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1030-30G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- UC
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| n | 15.9mm |
| m | 22.2mm |
| G | 6mm |
| Grub screw | M6x1 |
| Weight | 0.32 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
