SKU: UC.206-19

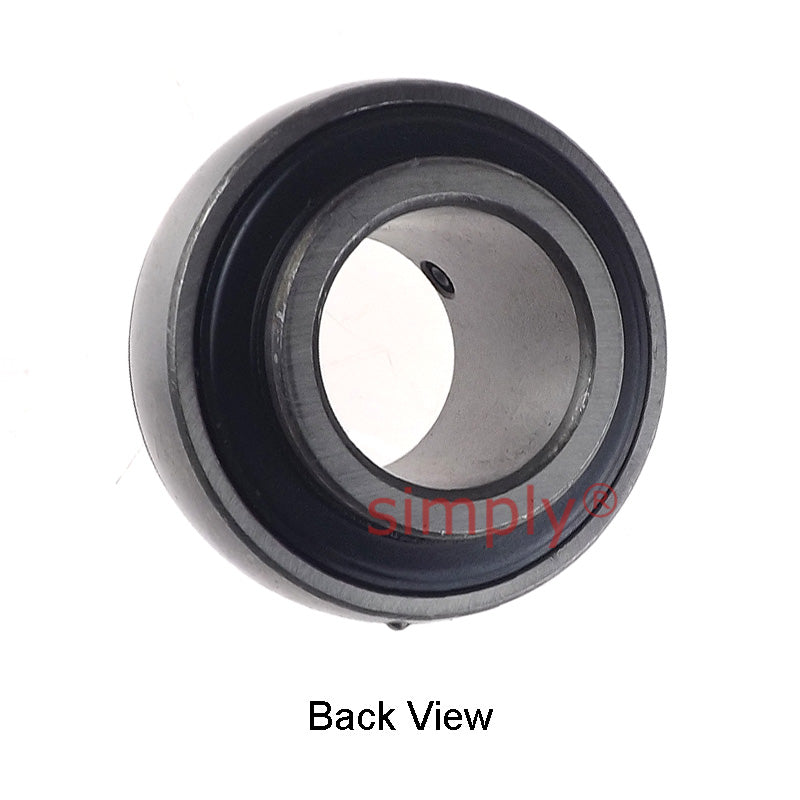

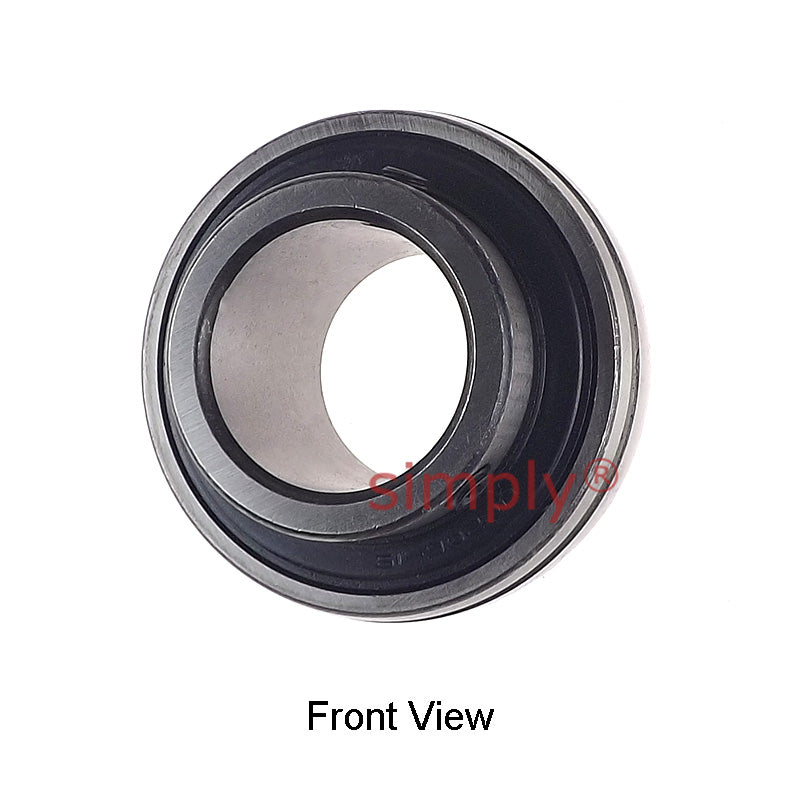

UC206-19 Imperial Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
UC206-19 Imperial Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
Regular price
€8,98
ex VAT
Regular price
Sale price
€8,98
ex VAT
In stock
Price Break
10+
€7,99
19+
€7,54
29+
€7,45
39+
€7,36
49+
€7,27
74+
€7,18
99+
€6,74
199+
€6,65
249+
€6,56
499+
€6,47
999+
€6,29
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| n | 15.9mm |
| m | 22.2mm |
| G | 6mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.34 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
