SKU: UC.208-24

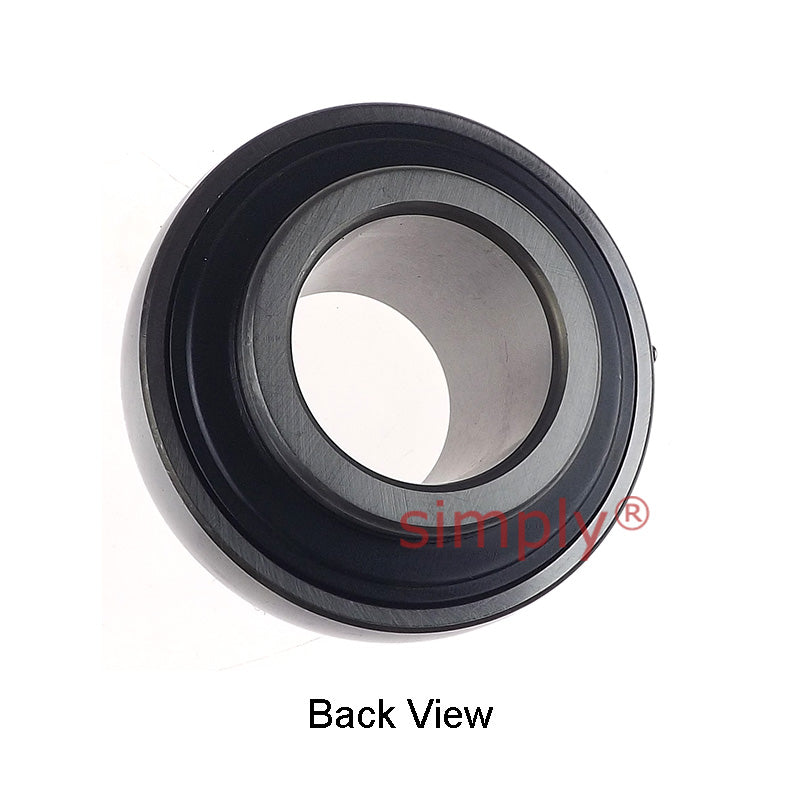

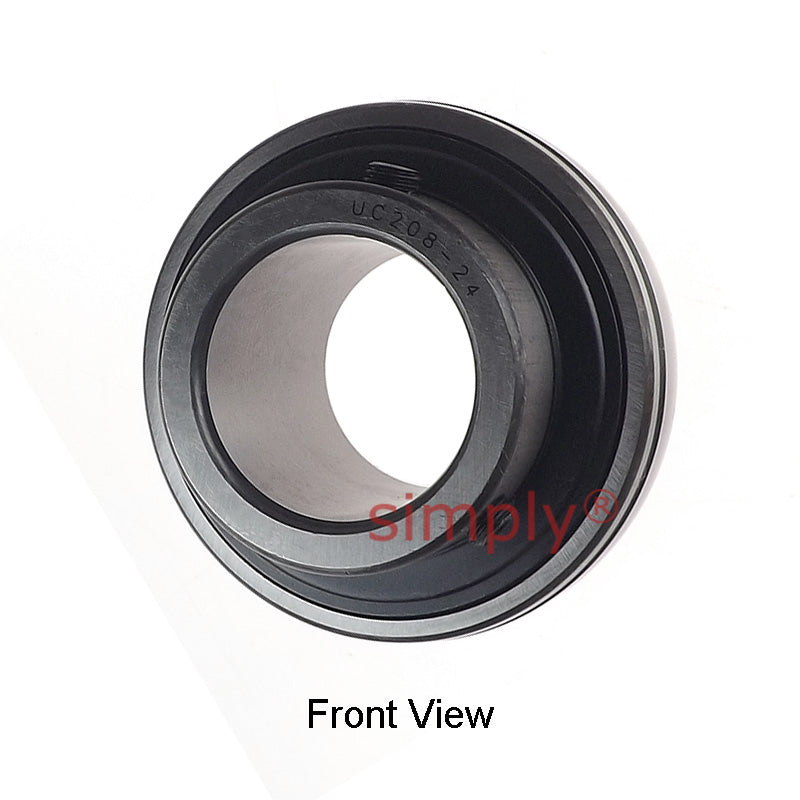

UC208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
UC208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
Regular price
€13,95
ex VAT
Regular price
Sale price
€13,95
ex VAT
Equivalent to: 1040-1-1/2G
In stock
Price Break
3+
€9,88
4+
€9,32
9+
€9,21
19+
€9,10
49+
€8,99
99+
€8,88
499+
€8,32
999+
€8,21
1999+
€8,10
2999+
€7,99
4999+
€7,77
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1040-1-1/2G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- UC
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 21mm |
| n | 19mm |
| m | 30.2mm |
| G | 8mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.68 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
