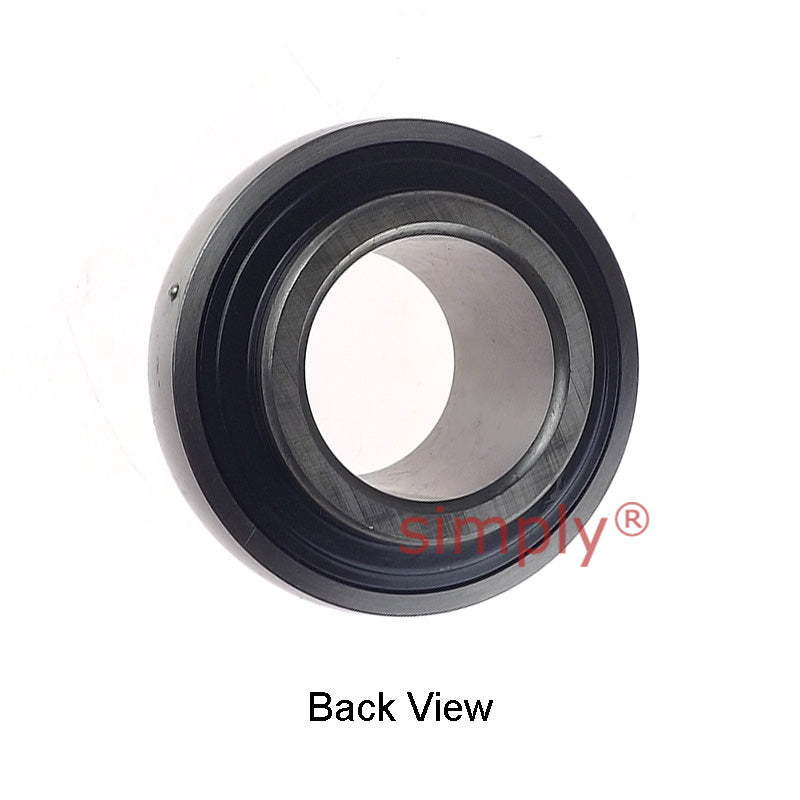

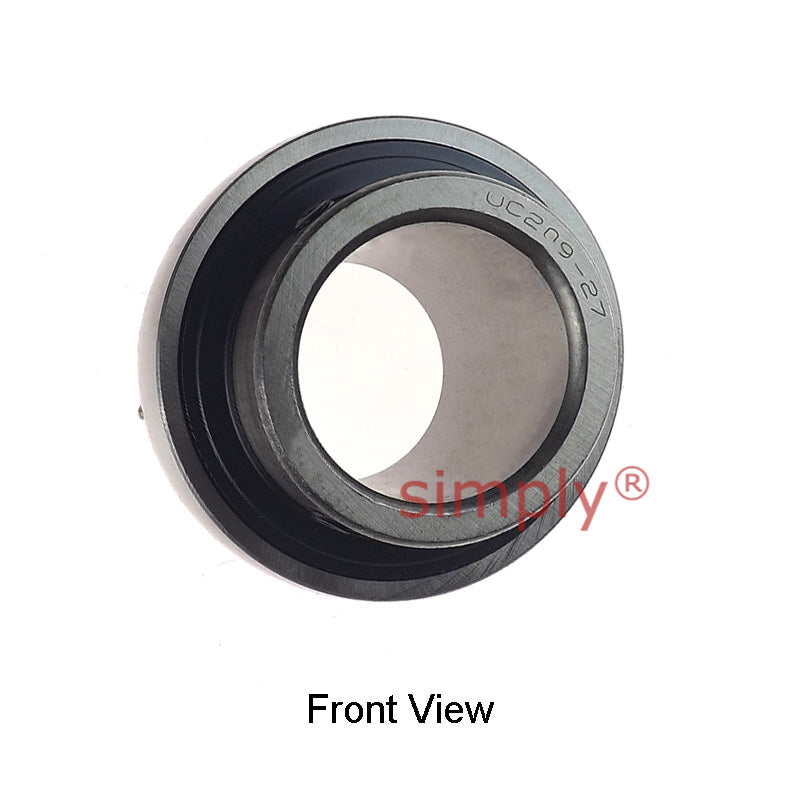

UC209-27 Imperial Bearing Insert with 1-11/16 inch Bore 85mm Outside Dia
UC209-27 Imperial Bearing Insert with 1-11/16 inch Bore 85mm Outside Dia
Regular price
€5,77
ex VAT
Regular price
Sale price
€5,77
ex VAT
Equivalent to: 1045-1-11/16G
In stock
Price Break
10+
€5,14
19+
€4,85
29+
€4,79
39+
€4,73
49+
€4,67
74+
€4,62
99+
€4,33
199+
€4,27
249+
€4,21
499+
€4,15
999+
€4,04
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1045-1-11/16G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 85mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.74 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
