SKU: UC.209-28.TS.CHAL

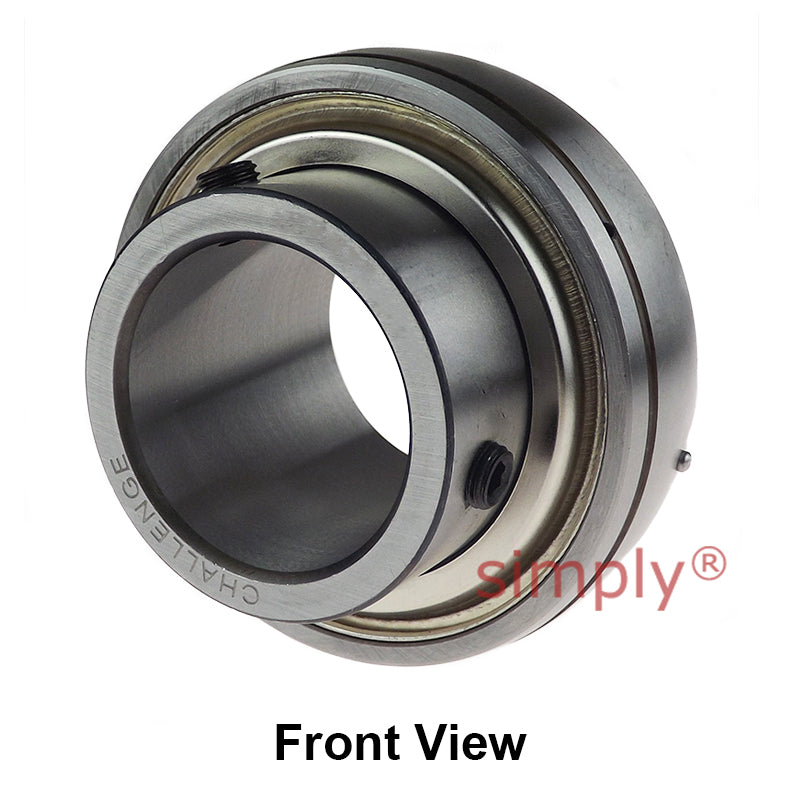

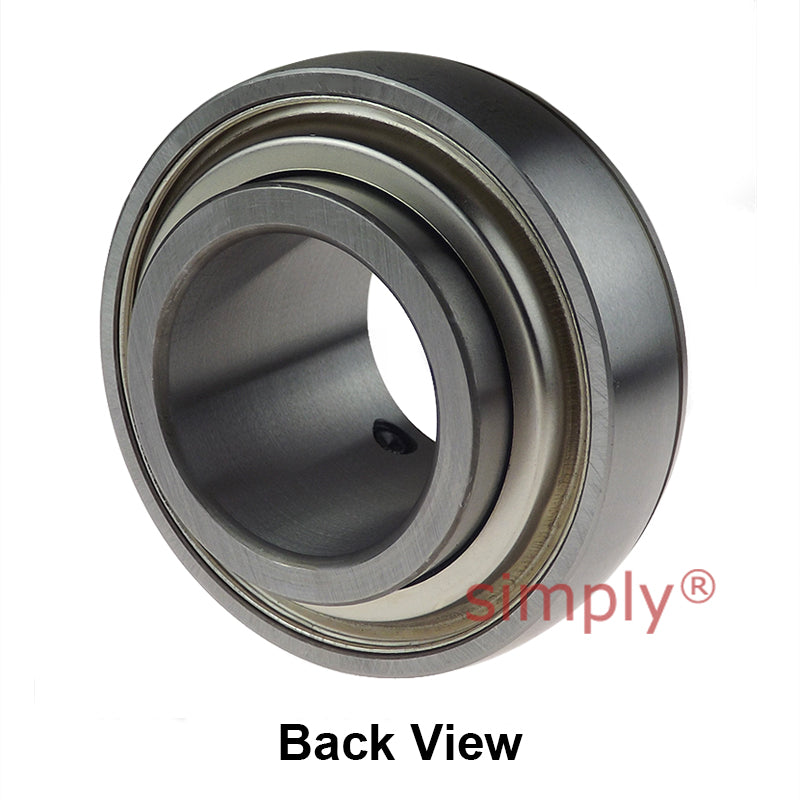

Challenge UC209-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC209-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€35,31
ex VAT
Regular price
Sale price
€35,31
ex VAT
Equivalent to: UC.209-28
In stock
Price Break
10+
€31,43
19+
€29,66
29+
€29,31
39+
€28,95
49+
€28,60
74+
€28,25
99+
€26,48
199+
€26,13
249+
€25,78
499+
€25,42
999+
€24,72
Couldn't load pickup availability
Share this product
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.209-28
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| Shaft Diameter d | 1-3/4 inch |
|---|---|
| Outside Diameter D | 85mm |
| Overall Width Bi | 49.2mm |
| Inner Race Width Be | 22mm |
| Back of Bearing to Centre Line n | 19mm |
| Front of Bearing to Centre Line m | 30.2mm |
| Dimension G | 8mm |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2560kg |
| Load Rating (Static) | 1810kg |
| Max Speed | 1900 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
