SKU: UC.211

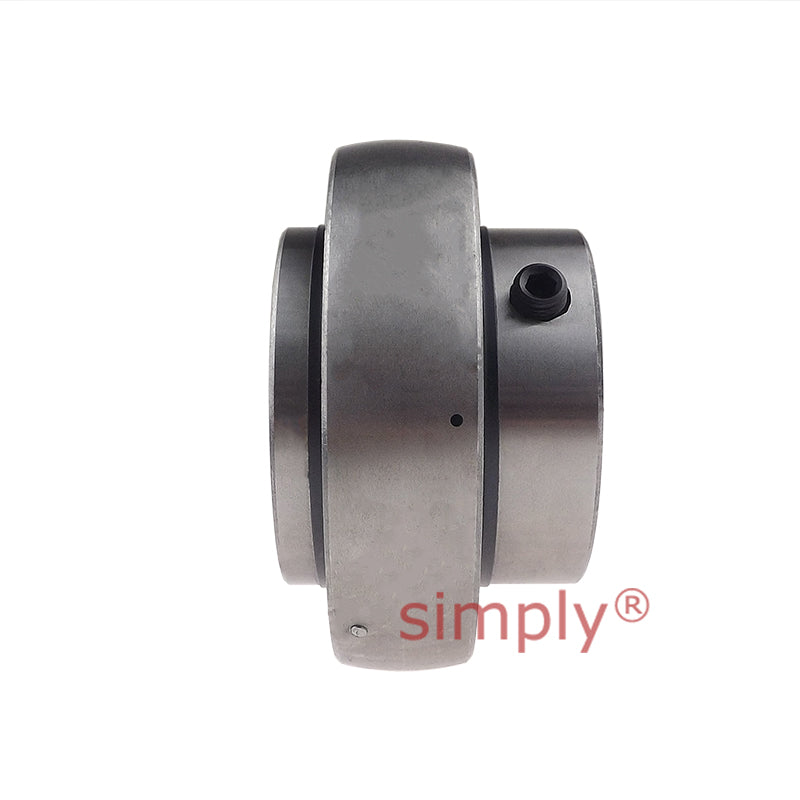

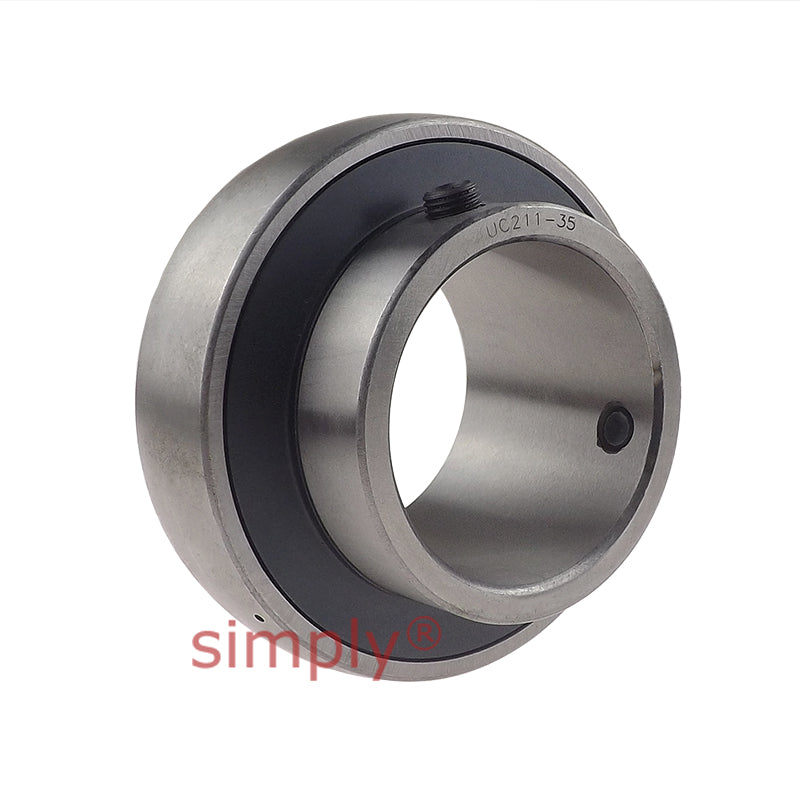

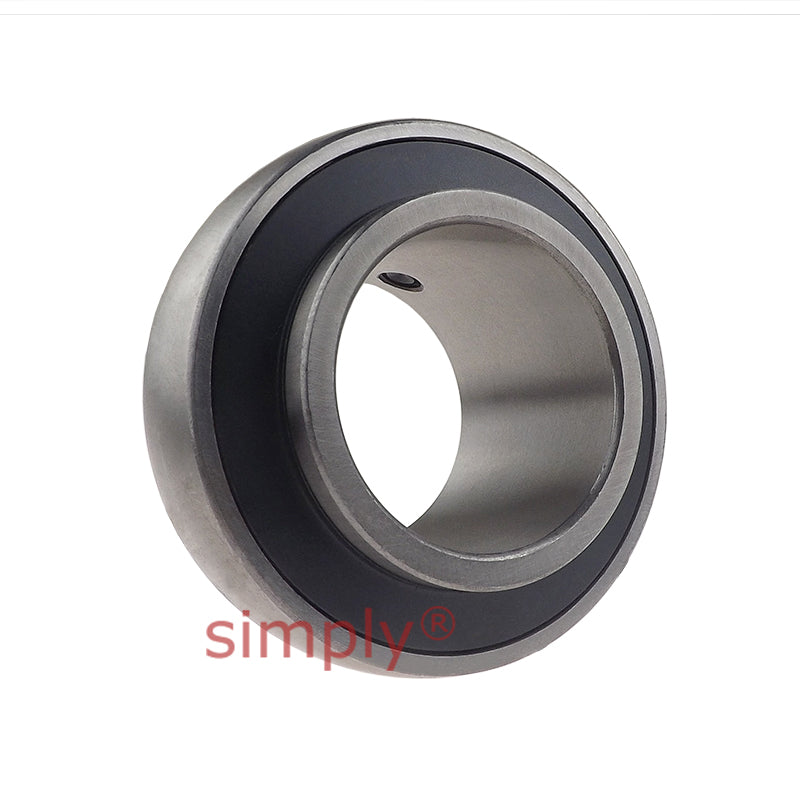

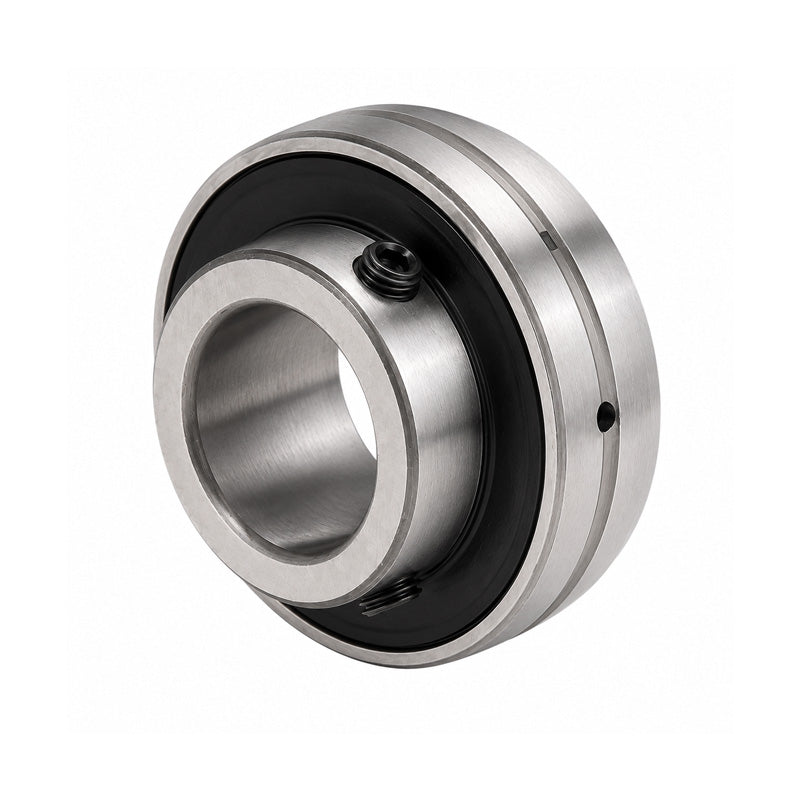

UC211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
UC211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
Regular price
€27,94
ex VAT
Regular price
Sale price
€27,94
ex VAT
Equivalent to: 1055-55G
In stock
Price Break
10+
€24,87
19+
€23,47
29+
€23,19
39+
€22,91
49+
€22,63
74+
€22,35
99+
€20,96
199+
€20,68
249+
€20,40
499+
€20,12
999+
€19,56
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1055-55G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| n | 22.2mm |
| m | 33.4mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.09 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
