SKU: UC.212-38

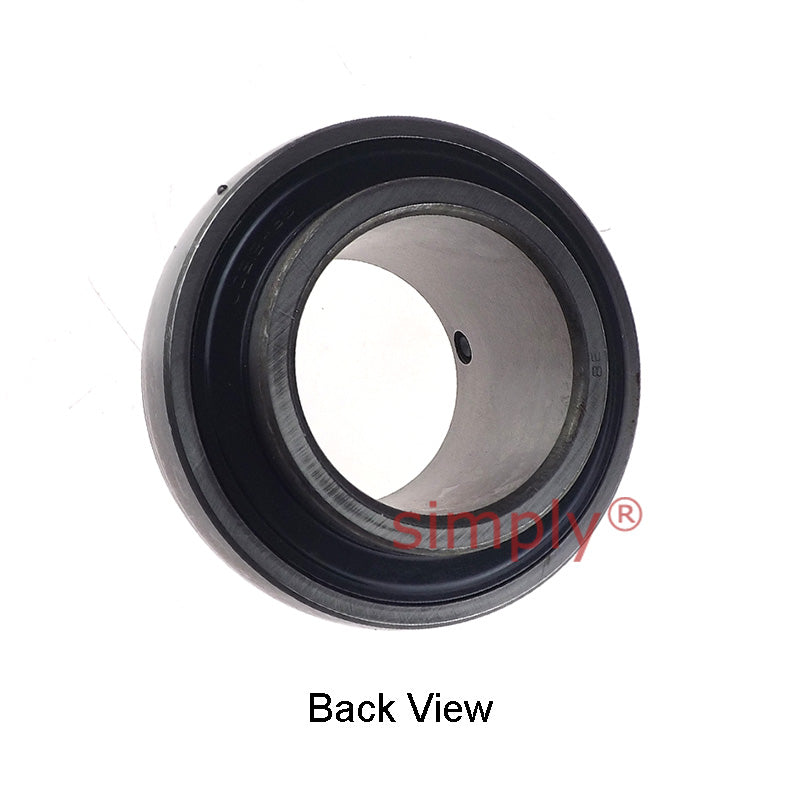

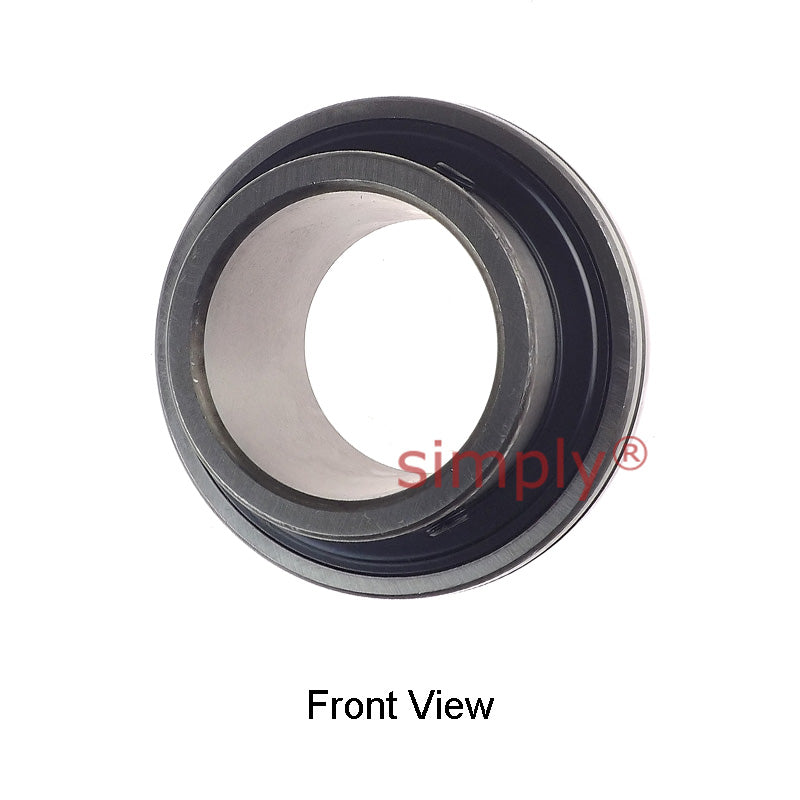

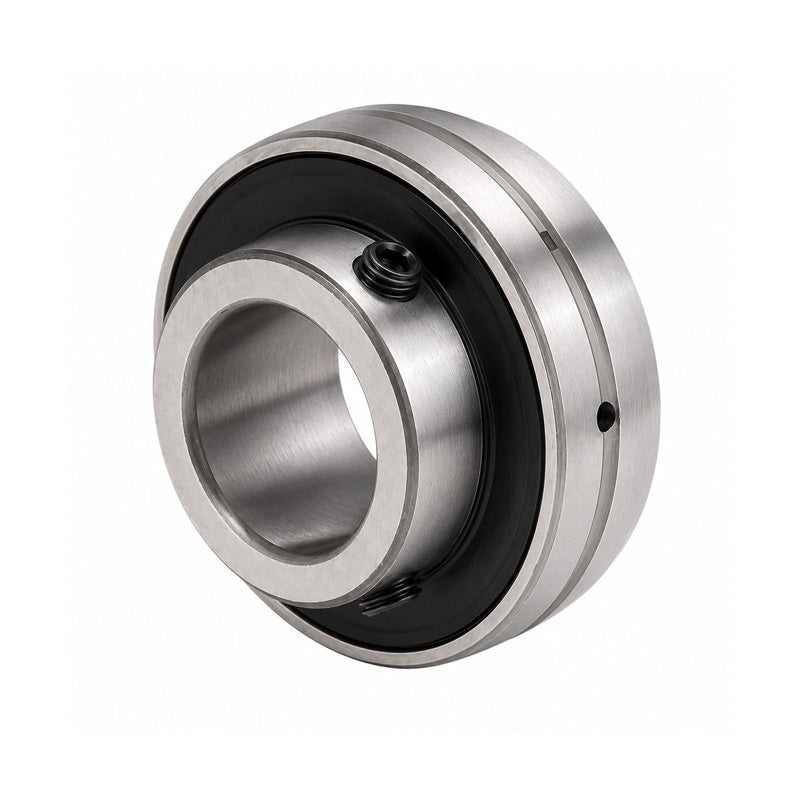

UC212-38 Imperial Bearing Insert with 2-3/8 inch Bore 110mm Outside Dia
UC212-38 Imperial Bearing Insert with 2-3/8 inch Bore 110mm Outside Dia
Regular price
€16,95
ex VAT
Regular price
Sale price
€16,95
ex VAT
In stock
Price Break
3+
€12,82
4+
€12,10
9+
€11,96
19+
€11,82
49+
€11,67
99+
€11,53
499+
€10,81
999+
€10,66
1999+
€10,52
2999+
€10,38
4999+
€10,09
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Outside Diameter:
- 110mm
- Style:
- UC
Technical
Technical
| d | 2-3/8 inch |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 1.54 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
