SKU: UC.213

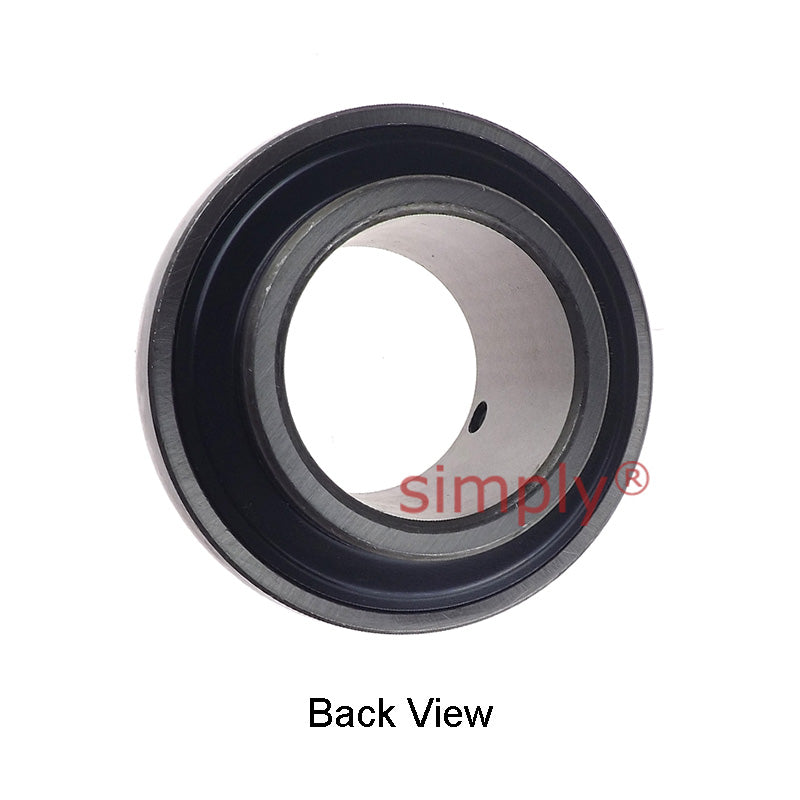

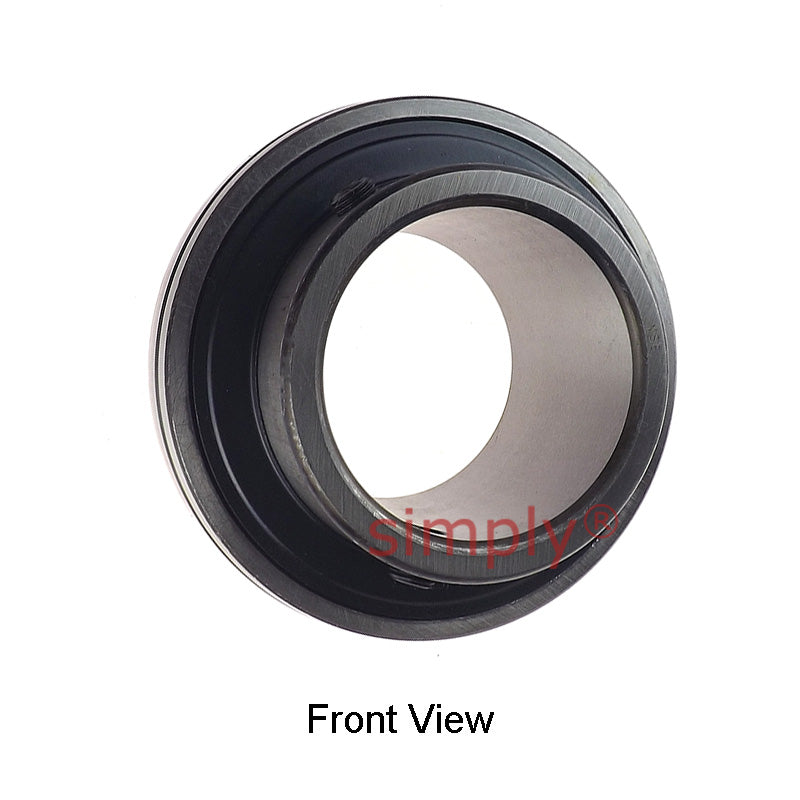

UC213 Metric Bearing Insert with 65mm Bore 120mm Outside Dia
UC213 Metric Bearing Insert with 65mm Bore 120mm Outside Dia
Regular price
€11,70
ex VAT
Regular price
Sale price
€11,70
ex VAT
In stock
Price Break
10+
€10,41
19+
€9,83
29+
€9,71
39+
€9,59
49+
€9,48
74+
€9,36
99+
€8,78
199+
€8,66
249+
€8,54
499+
€8,42
999+
€8,19
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Style:
- UC
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| Bi | 65.1mm |
| Be | 28mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.86 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
