SKU: UC.213-40.TS.CHAL

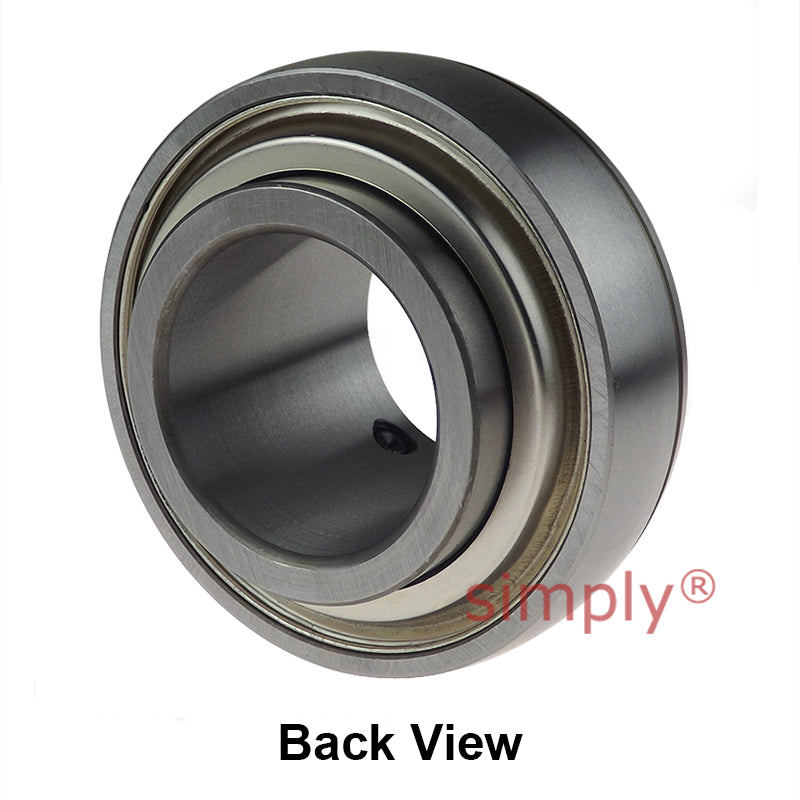

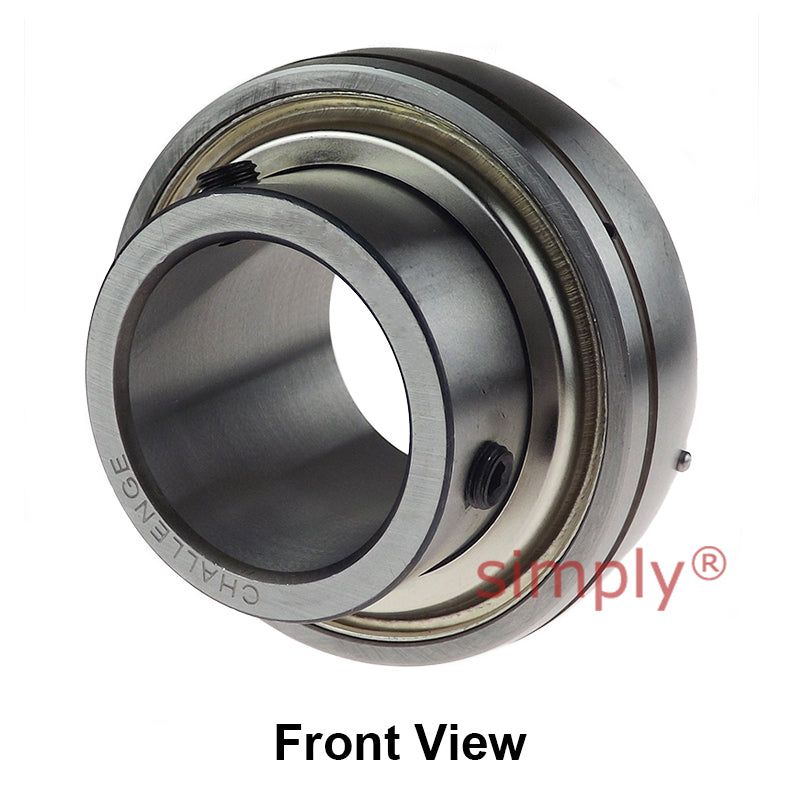

Challenge UC213-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC213-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€105,50
ex VAT
Regular price
Sale price
€105,50
ex VAT
Equivalent to: UC.213-40
In stock
Price Break
10+
€93,90
19+
€88,62
29+
€87,57
39+
€86,51
49+
€85,46
74+
€84,40
99+
€79,13
199+
€78,07
249+
€77,02
499+
€75,96
999+
€73,85
Couldn't load pickup availability
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.213-40
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| Shaft Diameter d | 2-1/2 inch |
|---|---|
| Outside Diameter D | 120mm |
| Overall Width Bi | 65.1mm |
| Inner Race Width Be | 30mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Front of Bearing to Centre Line m | 39.7mm |
| Dimension G | 10mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 4480kg |
| Load Rating (Static) | 3470kg |
| Max Speed | 1400 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
