SKU: UC.214

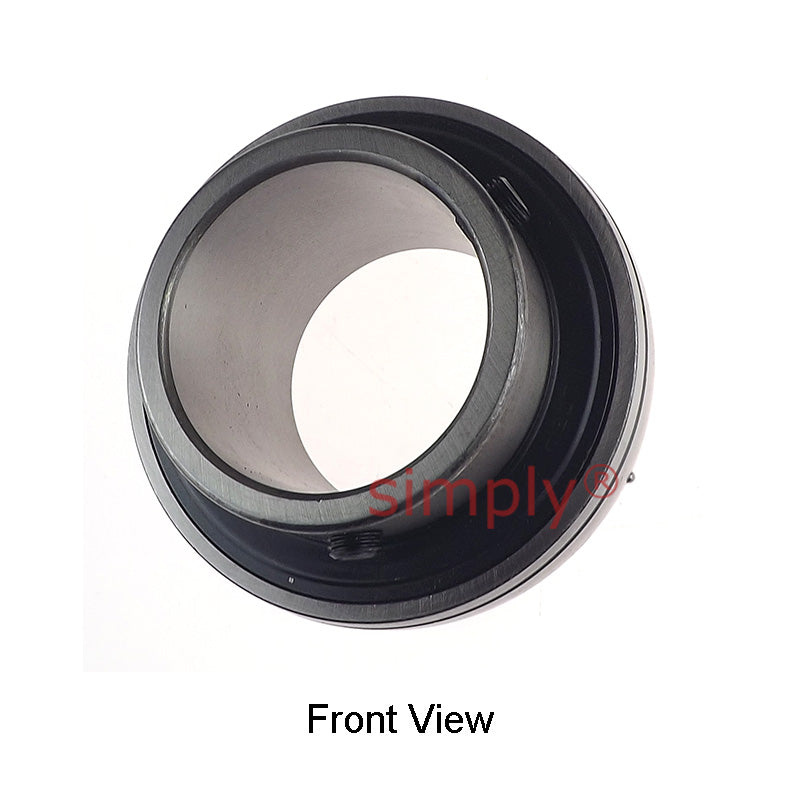

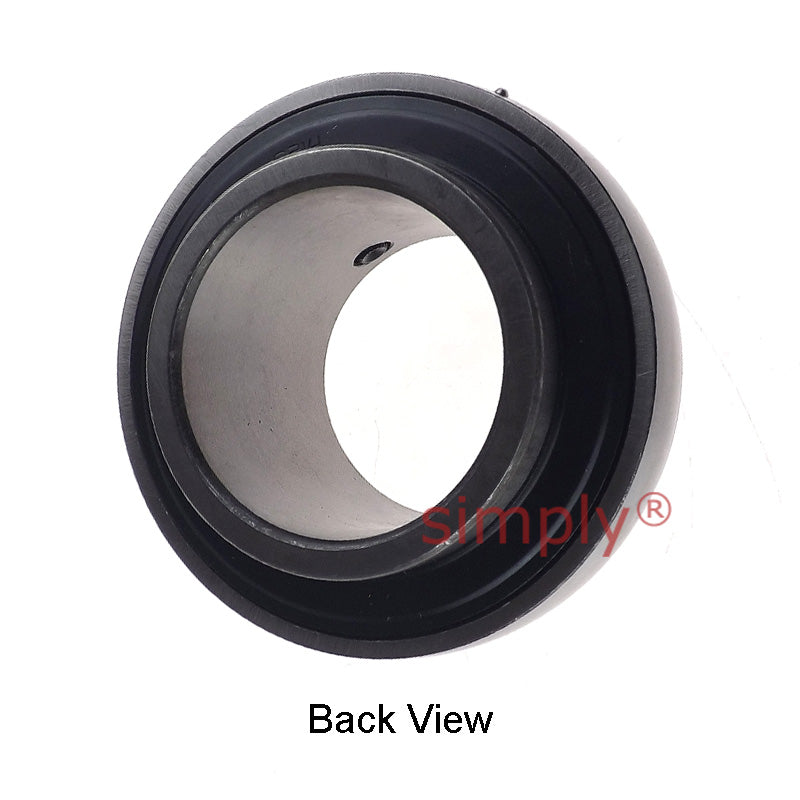

UC214 Metric Bearing Insert with 70mm Bore 125mm Outside Dia
UC214 Metric Bearing Insert with 70mm Bore 125mm Outside Dia
Regular price
€50,76
ex VAT
Regular price
Sale price
€50,76
ex VAT
In stock
Price Break
10+
€45,18
19+
€42,64
29+
€42,13
39+
€41,62
49+
€41,12
74+
€40,61
99+
€38,07
199+
€37,56
249+
€37,05
499+
€36,55
999+
€35,53
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| Bi | 74.6mm |
| Be | 30mm |
| n | 30.2mm |
| m | 44.4mm |
| G | 12mm |
| Grub screw | M12x1.5 |
| Weight | 2.05 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
