SKU: UC.218

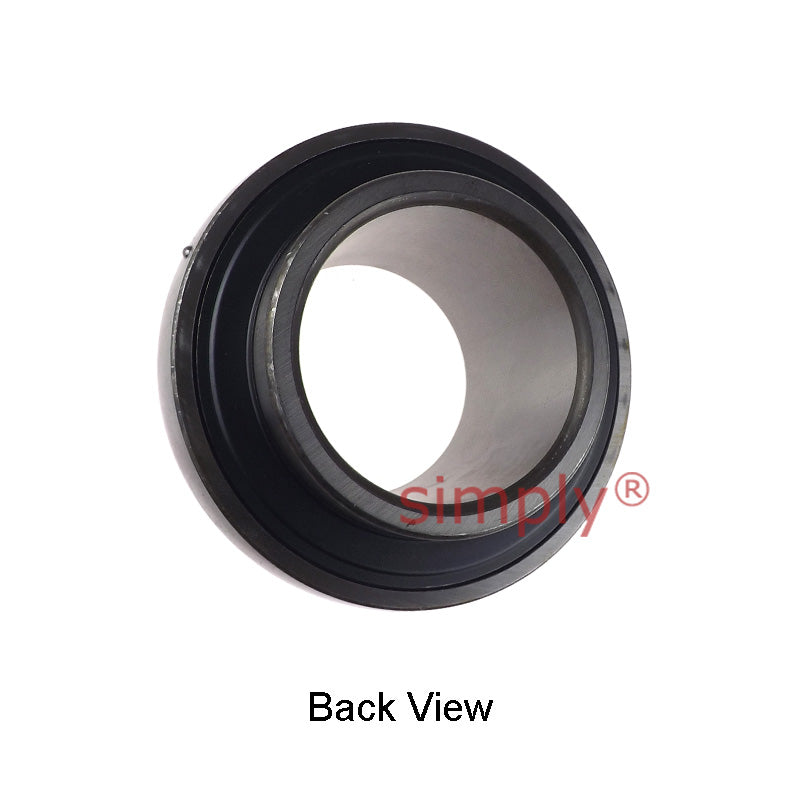

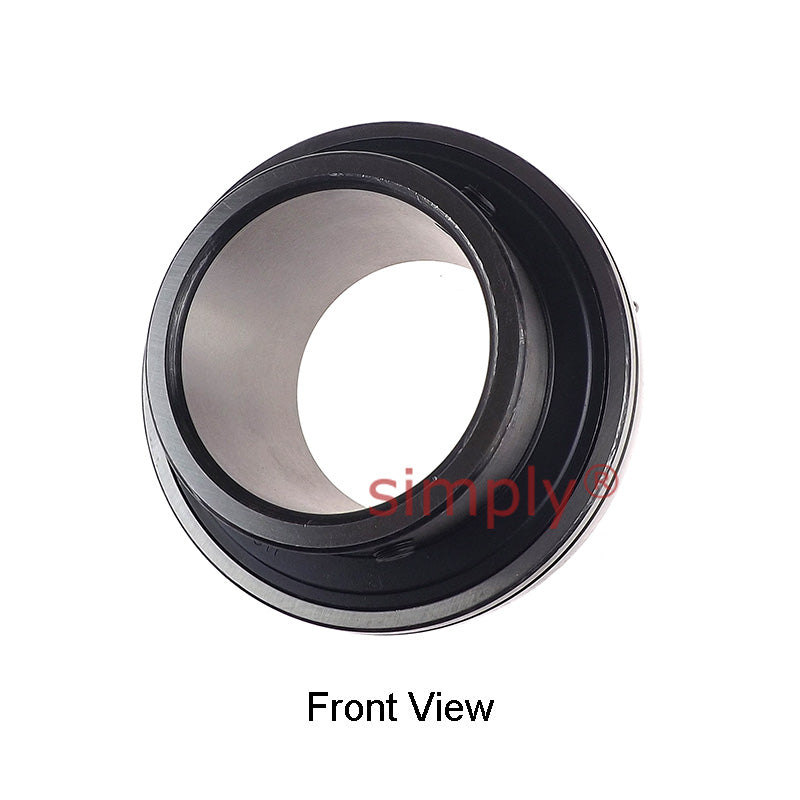

UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
Regular price
€169,35
ex VAT
Regular price
Sale price
€169,35
ex VAT
In stock
Price Break
10+
€150,72
19+
€142,25
29+
€140,56
39+
€138,87
49+
€137,17
74+
€135,48
99+
€127,01
199+
€125,32
249+
€123,63
499+
€121,93
999+
€118,55
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| Bi | 96mm |
| Be | 37mm |
| n | 39.7mm |
| m | 56.3mm |
| G | 14mm |
| Grub screw | M12x1.5 |
| Weight | 4.35 kg |
| Dynamic load | 7500 kgf |
| Static load | 6170 kgf |
