SKU: UCC203D1-NTN

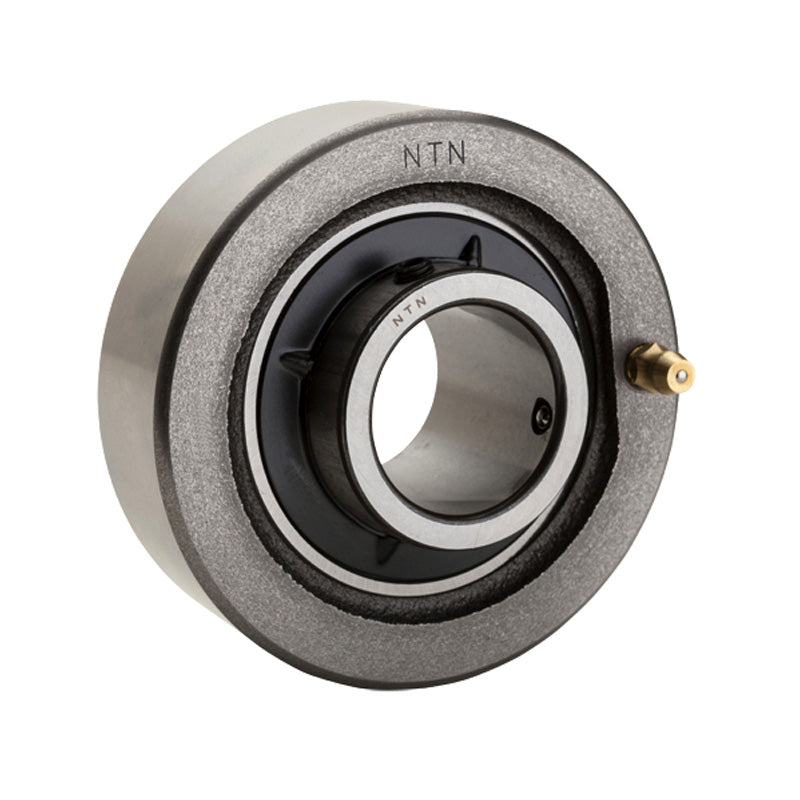

NTN UCC203D1 Metric Cast Iron Cartridge Unit with 17mm Bore Insert 72mm Outside Dia - Allow 2-3 Days
NTN UCC203D1 Metric Cast Iron Cartridge Unit with 17mm Bore Insert 72mm Outside Dia - Allow 2-3 Days
Regular price
€30,91
ex VAT
Regular price
Sale price
€30,91
ex VAT
In stock
Price Break
5+
€30,60
10+
€29,36
20+
€28,75
50+
€27,82
100+
€27,20
500+
€25,66
1000+
€21,64
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 17mm |
|---|---|
| H | 72mm |
| A | 20mm |
| r | 2mm |
| B | 31mm |
| S | 12.7mm |
| Mass | 0.5 kg |
