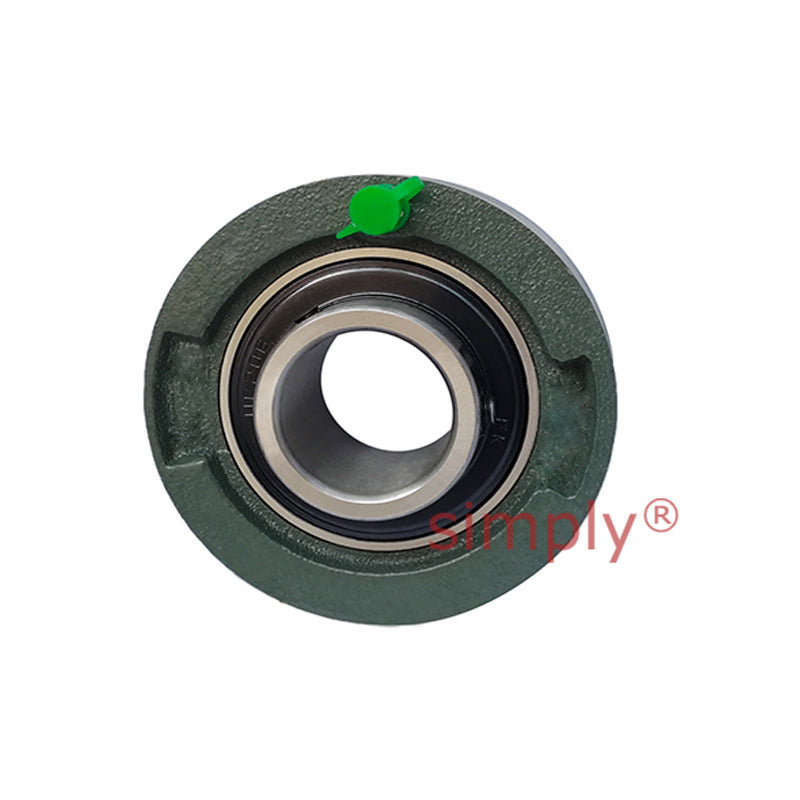

UCC209-27 Imperial Cast Iron Normal Duty Cartridge Unit with 1-11/16 inch Bore Insert 4.3307 inch Outside Dia

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

42.86mm = 1.687 (1-11/16) inch

Outside Diameter:

110mm = 4.3307 inch

Style:

UCC
