SKU: UCC209-28

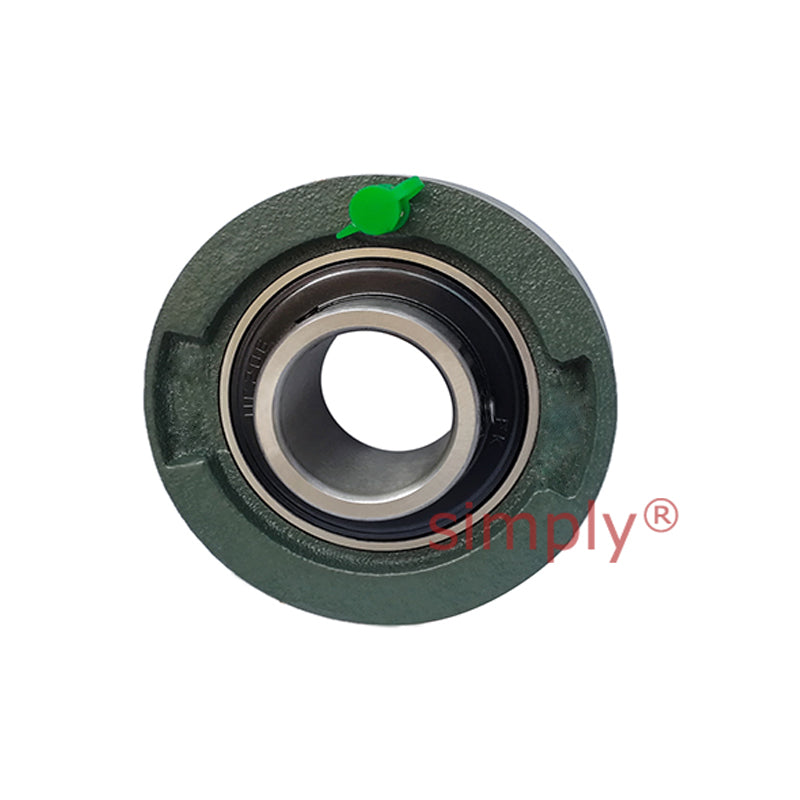

UCC209-28 Imperial Cast Iron Normal Duty Cartridge Unit with 1-3/4 inch Bore Insert 4.3307 inch Outside Dia
UCC209-28 Imperial Cast Iron Normal Duty Cartridge Unit with 1-3/4 inch Bore Insert 4.3307 inch Outside Dia
Regular price
€36,71
ex VAT
Regular price
Sale price
€36,71
ex VAT
In stock
Price Break
10+
€32,67
19+
€30,84
29+
€30,47
39+
€30,10
49+
€29,74
74+
€29,37
99+
€27,53
199+
€27,17
249+
€26,80
499+
€26,43
999+
€25,70
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 110mm = 4.3307 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-3/4 inch |
|---|---|
| Outer Dia a | 4.3307 inch |
| g | 1-7/32 inch |
| r | 0.098 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bearing No | UC209-28 |
| Housing No | C209 |
