SKU: UCC310D1-NTN

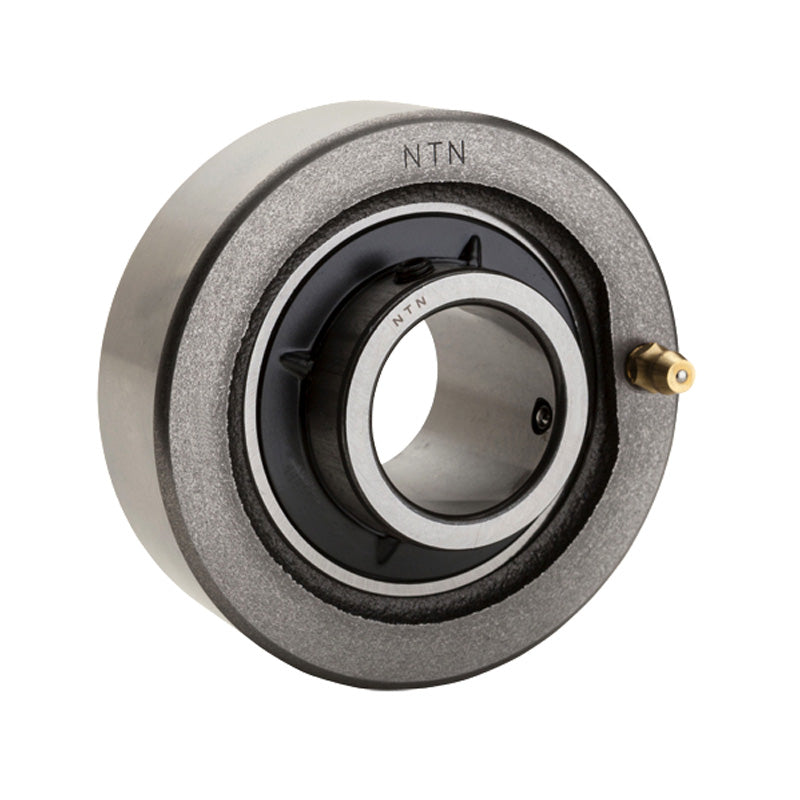

NTN UCC310D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
NTN UCC310D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
Regular price
€132,79
ex VAT
Regular price
Sale price
€132,79
ex VAT
In stock
Price Break
5+
€131,46
10+
€126,15
20+
€123,49
50+
€119,51
100+
€116,86
500+
€110,22
1000+
€92,95
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 140mm |
| A | 40mm |
| r | 3.5mm |
| B | 61mm |
| S | 22mm |
| Mass | 3.3 kg |
