SKU: UCEHE208-24-SNR

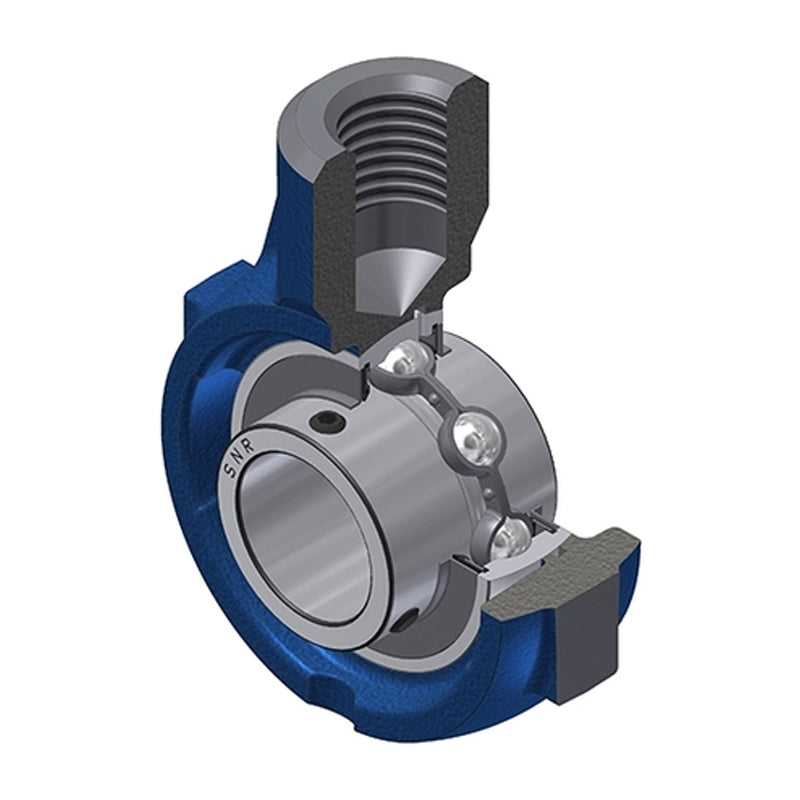

SNR UCEHE208-24 Imperial Cast Iron Hanger Bearing Unit with 1-1/2 inch Bore Insert - Allow 2-3 Days
SNR UCEHE208-24 Imperial Cast Iron Hanger Bearing Unit with 1-1/2 inch Bore Insert - Allow 2-3 Days
Regular price
€77,95
ex VAT
Regular price
Sale price
€77,95
ex VAT
In stock
Price Break
3+
€65,84
4+
€63,18
9+
€61,85
19+
€59,85
49+
€58,52
99+
€55,20
499+
€46,55
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/2 inch |
| A | 36mm |
| A2 | 40mm |
| B | 49.2mm |
| E | 24mm |
| H | 100mm |
| L | 135mm |
| L1 | 85mm |
| L3 | 45mm |
| S | 19mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.58 kg |
