SKU: UCF.204

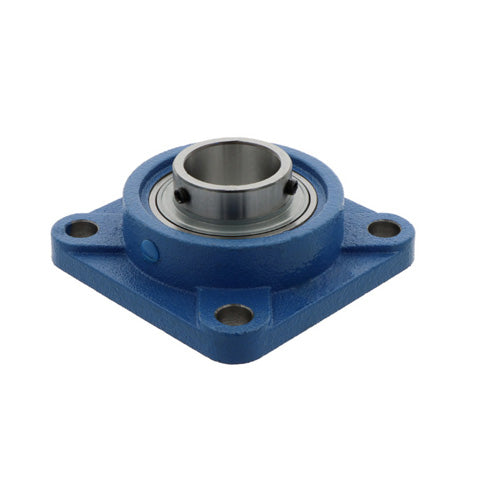

UCF204 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert
UCF204 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
Equivalent to: SF20
In stock
Price Break
3+
€6,84
4+
€6,46
9+
€6,38
19+
€6,31
49+
€6,23
99+
€6,15
499+
€5,77
999+
€5,69
1999+
€5,61
2999+
€5,54
4999+
€5,38
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SF20
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- UCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| d | 20mm |
|---|---|
| a | 86mm |
| e | 64mm |
| i | 15mm |
| g | 12mm |
| L | 25.6mm |
| S | 12mm |
| Z | 33.3mm |
| Bi | 31mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.63 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
