SKU: UCF.210-32

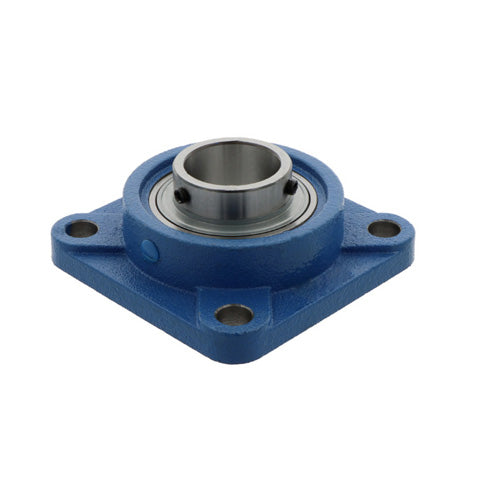

UCF210-32 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert
UCF210-32 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert
Regular price
€21,95
ex VAT
Regular price
Sale price
€21,95
ex VAT
In stock
Price Break
3+
€16,35
4+
€15,43
9+
€15,25
19+
€15,06
49+
€14,88
99+
€14,70
499+
€13,78
999+
€13,59
1999+
€13,41
2999+
€13,23
4999+
€12,86
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCF
- Bolt Hole Centres:
- 111mm
Technical
Technical
| d | 2 inch |
|---|---|
| a | 143mm |
| e | 111mm |
| i | 22mm |
| g | 18mm |
| L | 40mm |
| S | 16mm |
| Z | 54.6mm |
| Bi | 51.6mm |
| n | 19mm |
| Bolt Size | 16mm |
| Weight | 2.5 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
