SKU: UCF.211-32

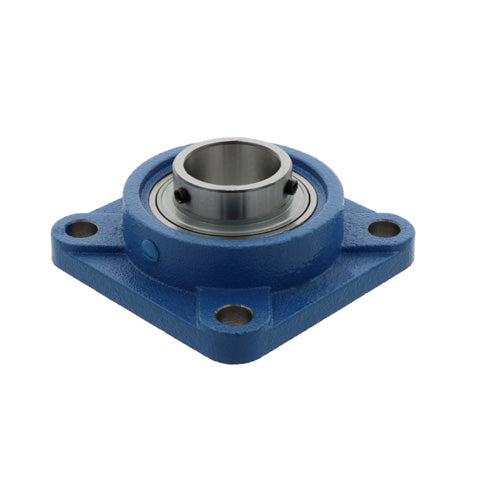

UCF211-32 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert
UCF211-32 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert
Regular price
€31,95
ex VAT
Regular price
Sale price
€31,95
ex VAT
Equivalent to: SF2
In stock
Price Break
3+
€23,79
4+
€22,45
9+
€22,19
19+
€21,92
49+
€21,65
99+
€21,38
499+
€20,05
999+
€19,78
1999+
€19,51
2999+
€19,25
4999+
€18,71
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SF2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCF
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 2 inch |
|---|---|
| a | 162mm |
| e | 130mm |
| i | 25mm |
| g | 20mm |
| L | 43mm |
| S | 19mm |
| Z | 58.4mm |
| Bi | 55.6mm |
| n | 22.2mm |
| Bolt Size | 16mm |
| Weight | 3.4 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
