SKU: UCFA207-20
UCFA207-20 Imperial Cast Iron Adjustable Flange Unit with 1-1/4 inch Insert
UCFA207-20 Imperial Cast Iron Adjustable Flange Unit with 1-1/4 inch Insert
Regular price
€22,02
ex VAT
Regular price
Sale price
€22,02
ex VAT
In stock
Price Break
10+
€19,60
19+
€18,50
29+
€18,28
39+
€18,06
49+
€17,84
74+
€17,62
99+
€16,52
199+
€16,29
249+
€16,07
499+
€15,85
999+
€15,41
Couldn't load pickup availability
Description
Description

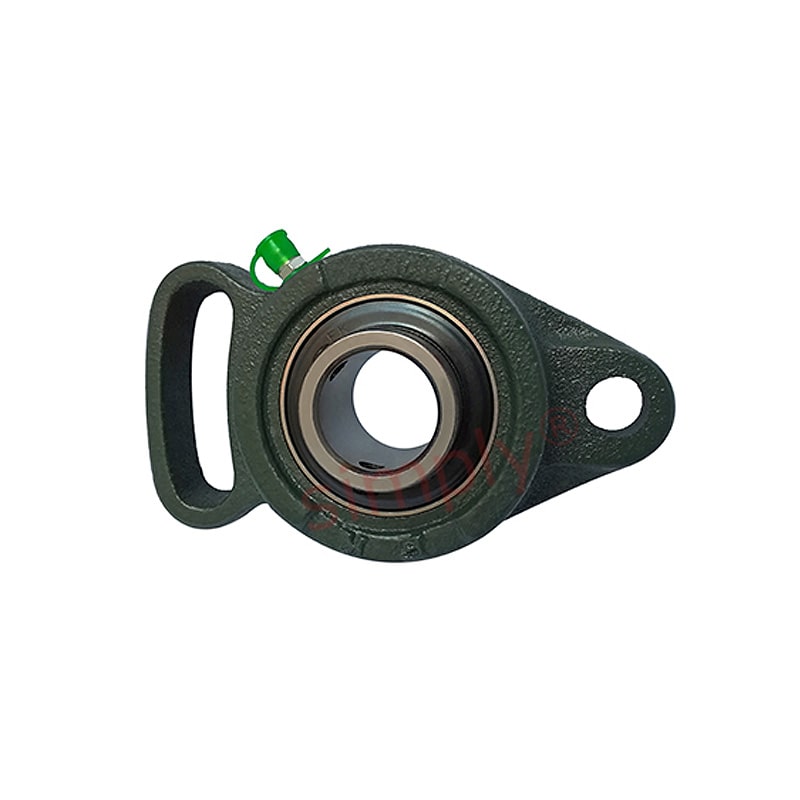

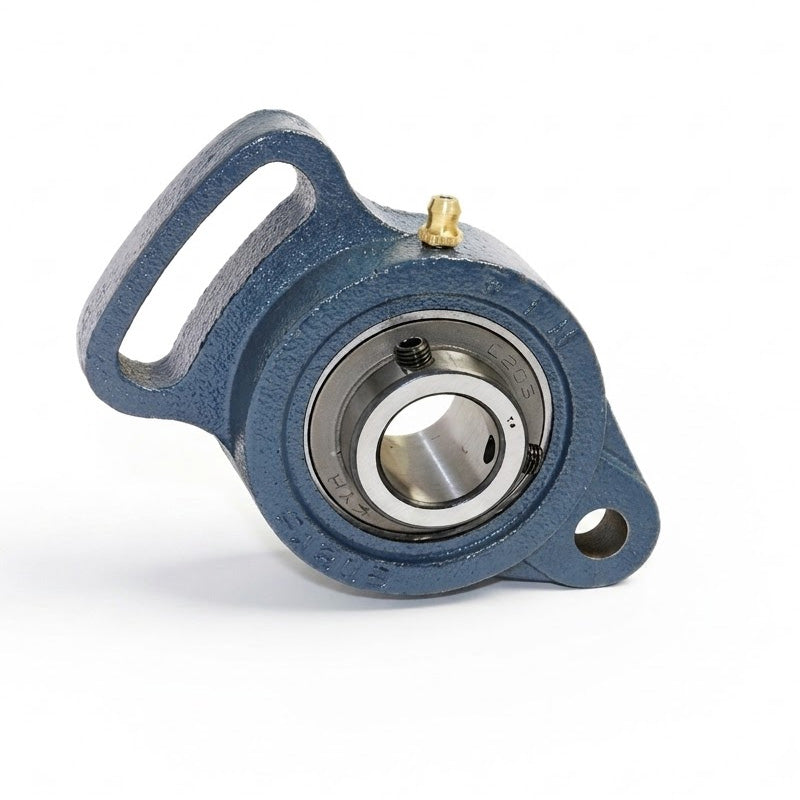

UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 128.19mm = 5.047 (5-3/64) inch
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 6-7/64 inch |
| e | 5-3/64 inch |
| i | 3/4 inch |
| g | 5/8 inch |
| l | 1-11/32 inch |
| s | 19/32 inch |
| b | 3-25/32 inch |
| z | 1-3/4 inch |
| f | 2-19/32 inch |
| c | 3-15/64 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bolt size | 7/16 inch |
| Bearing no | UC207-20 |
| Housing no | FA207 |
| Weight | 1.4 kg |
