SKU: UCFC.214-44

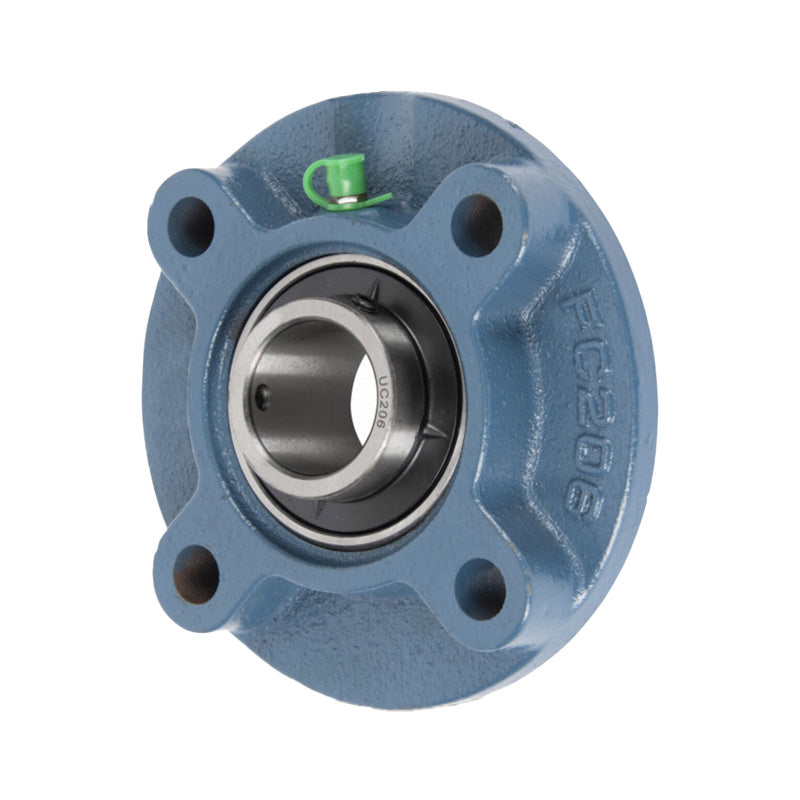

UCFC214-44 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-3/4 inch Insert
UCFC214-44 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-3/4 inch Insert
Regular price
€103,95
ex VAT
Regular price
Sale price
€103,95
ex VAT
In stock
Price Break
3+
€79,15
4+
€74,70
9+
€73,81
19+
€72,92
49+
€72,03
99+
€71,14
499+
€66,70
999+
€65,81
1999+
€64,92
2999+
€64,03
4999+
€62,25
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 177.01mm = 177.01 (6-31/32) inch
Technical
Technical

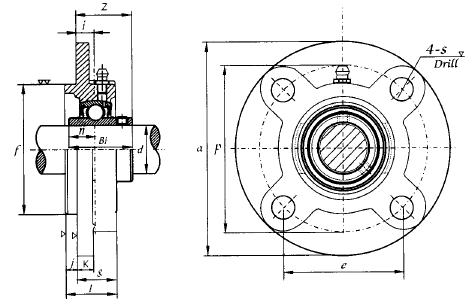

| d | 2-3/4 inch |
|---|---|
| a | 8-15/32 inch |
| P | 6-31/32 inch |
| e | 4-49/64 inch |
| i | 43/64 inch |
| L | 2-1/8 inch |
| s | 3/4 inch |
| j | 35/64 inch |
| k | 23/32 inch |
| g | 1-9/16 inch |
| f | 5.9055 inch |
| z | 2-13/32 inch |
| Bi | 2.9370 inch |
| n | 1.1890 inch |
| Bolt Size | 5/8 inch |
| Weight | 6.8 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
