SKU: UCFC206CO-SNR

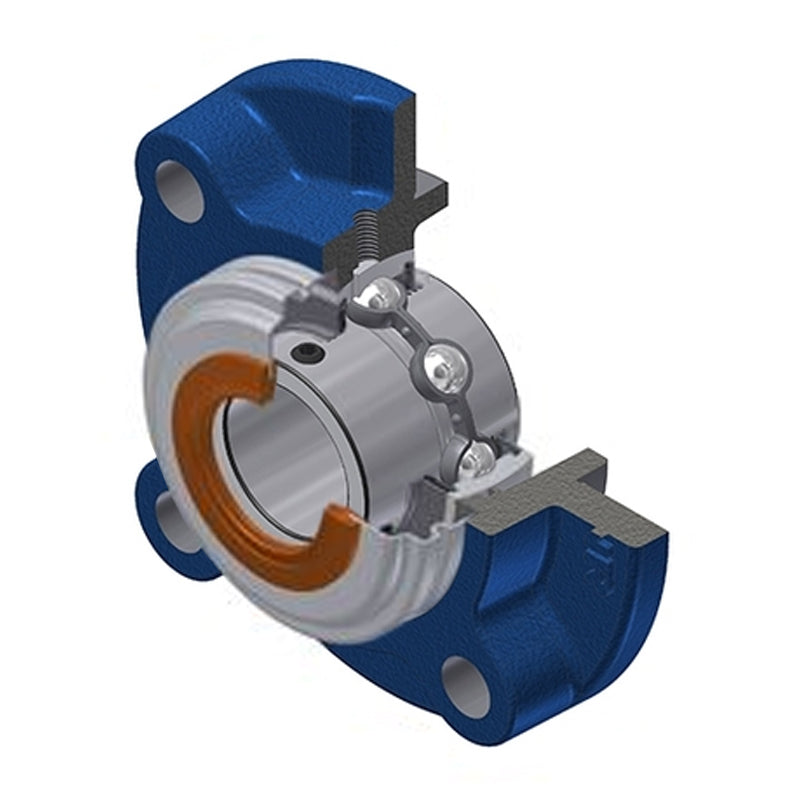

SNR UCFC206CO Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR UCFC206CO Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€54,95
ex VAT
Regular price
Sale price
€54,95
ex VAT
In stock
Price Break
3+
€41,18
4+
€38,86
9+
€38,40
19+
€37,94
49+
€37,48
99+
€37,01
499+
€34,70
999+
€34,24
1999+
€33,78
2999+
€33,31
4999+
€32,39
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 31mm |
| A1 | 8mm |
| A2 | 32.2mm |
| A4 | 23mm |
| B | 38.1mm |
| e | 10mm |
| H3 | 80mm |
| J | 100mm |
| L | 125mm |
| N | 12mm |
| S | 15.9mm |
| Dz | 70mm |
| Z | 44.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.314 kg |
