SKU: UCFC206T20-SNR

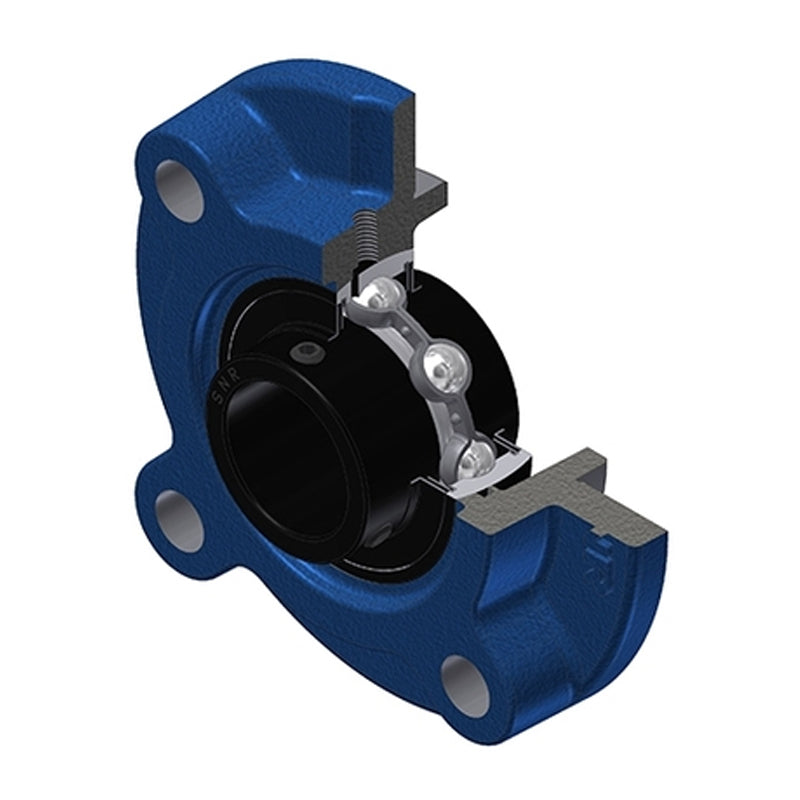

SNR UCFC206T20 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFC206T20 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert Wide Temperature Version - Allow 2-3 Days
Regular price
€103,95
ex VAT
Regular price
Sale price
€103,95
ex VAT
In stock
Price Break
3+
€87,76
4+
€84,22
9+
€82,44
19+
€79,79
49+
€78,01
99+
€73,58
499+
€62,06
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 31mm |
| A1 | 8mm |
| A2 | 32.2mm |
| A4 | 23mm |
| B | 38.1mm |
| e | 10mm |
| H3 | 80mm |
| J | 100mm |
| L | 125mm |
| N | 12mm |
| S | 15.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.28 kg |
