SKU: UCFC213CC-SNR

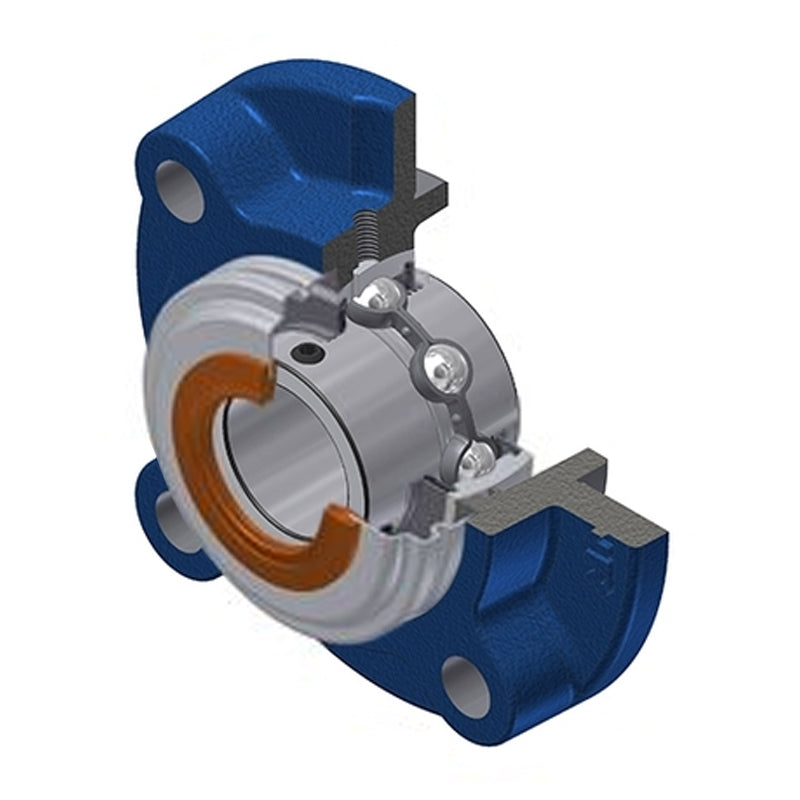

SNR UCFC213CC Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCFC213CC Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
€155,95
ex VAT
Regular price
Sale price
€155,95
ex VAT
In stock
Price Break
3+
€131,71
4+
€126,39
9+
€123,73
19+
€119,74
49+
€117,08
99+
€110,42
499+
€93,13
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 170mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 49mm |
| A1 | 15mm |
| A2 | 55.7mm |
| A4 | 35mm |
| B | 65.1mm |
| e | 16mm |
| H3 | 145mm |
| J | 170mm |
| L | 205mm |
| N | 19mm |
| S | 25.4mm |
| Dz | 132mm |
| Z | 74.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 5.641 kg |
